SANY SSR80 Compactor

Finance a brand new SSR80 compactor today with the best 3 year 3,000 warranty! We've got SSR80 vibratory compactors in stock and ready for your next rental or sale! Give us a call today!

SEE INVENTORY CALL 859.485.8500

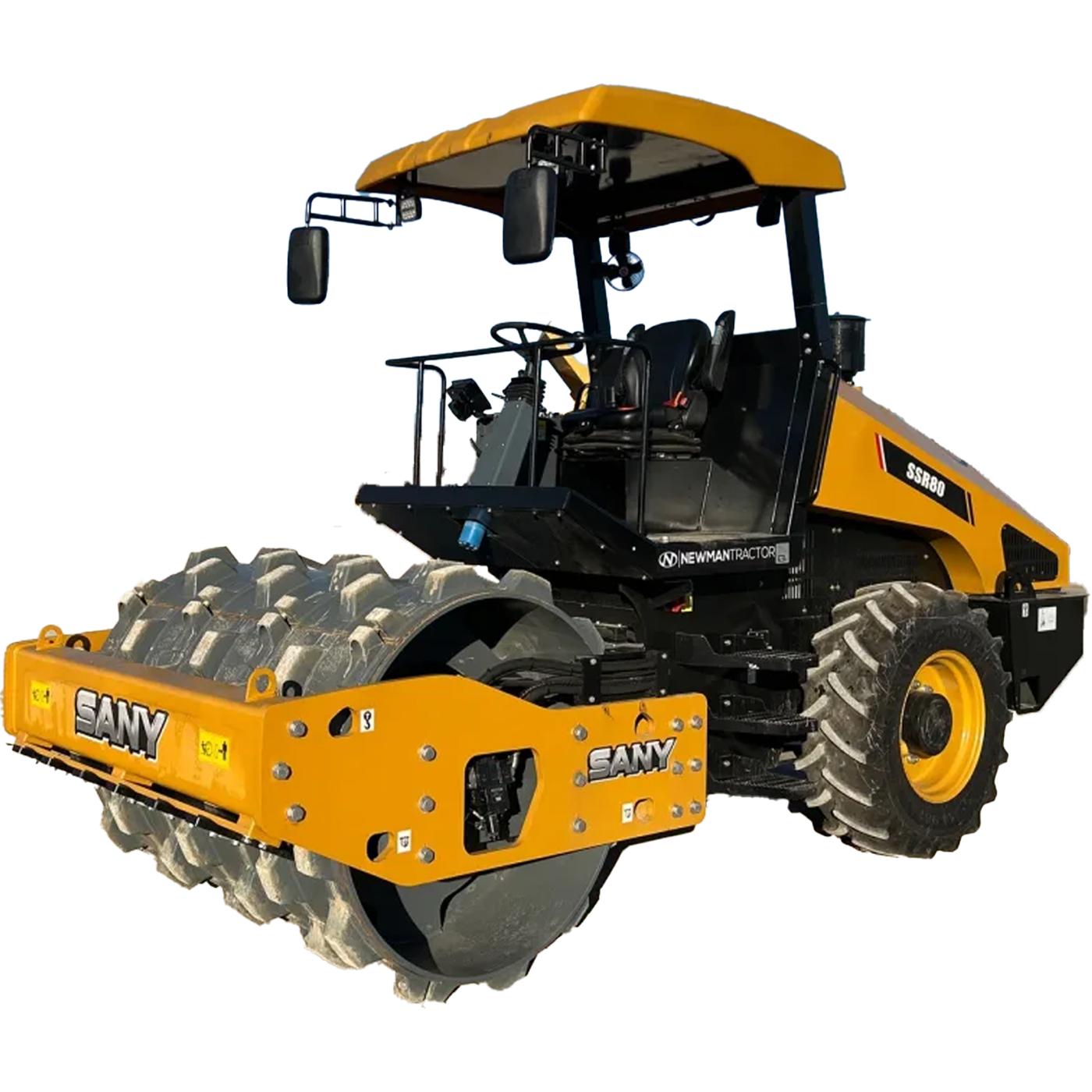

sany-ssr80-Compactor-available-for-sale-or-rental-near-you

Tier 4f/ Stage IV Certified

Gross Power: 72 hp

Max Torque: 214 lb-ft

Drum Width: 66"

Operating Weight: 15,752 lbs

Machine Length: 16' 11"

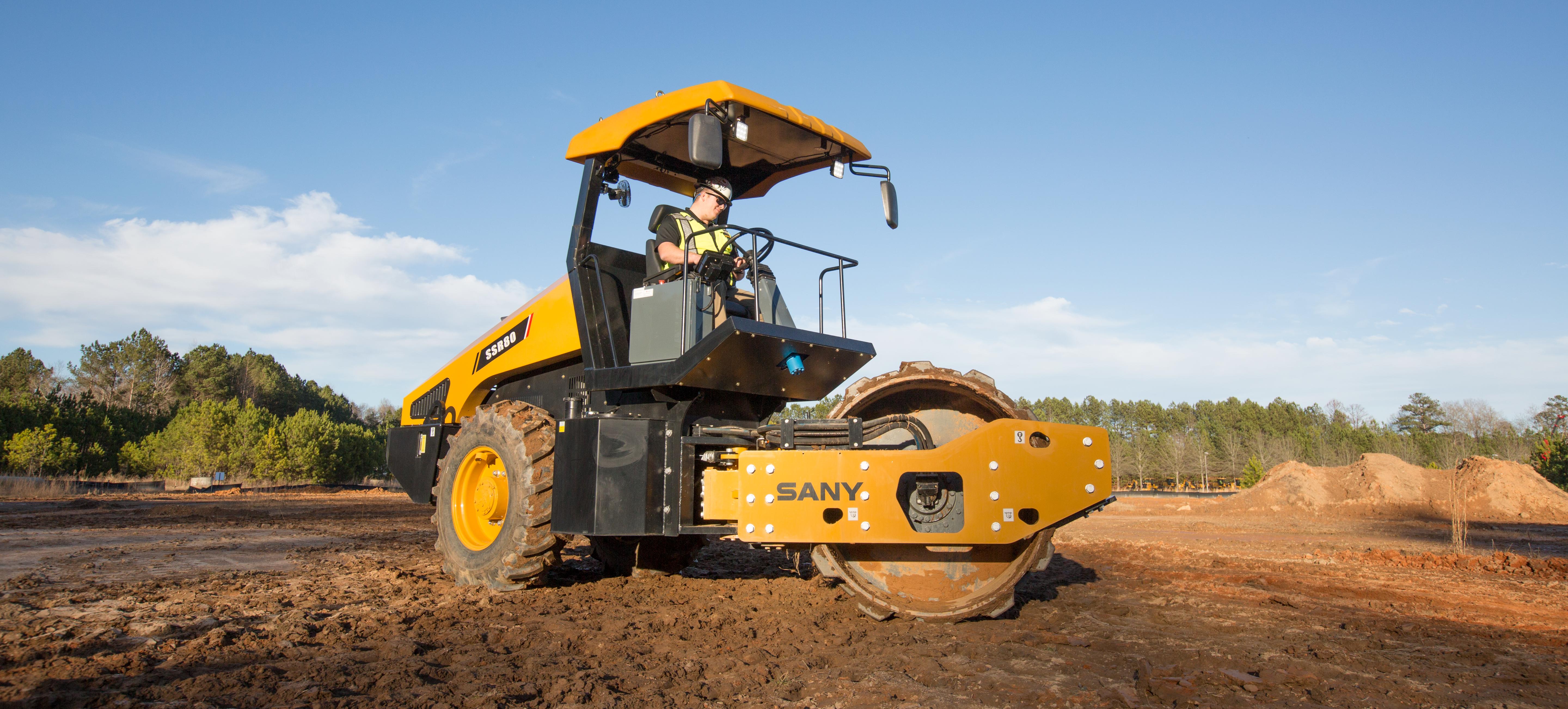

Sany SSR80 Compactors

Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free Sany SSR80 Compactors on-site demo! 859-485-8500

New SSR80 Compactors

Sany SSR80 Compactor Features

The SSR80 compactor is everything you need in a roller with nothing you don't! This vibratory compactor is designed to have a minimal learning curve, with components that will last. The most beautiful thing about this compactor is its simplicity. Its the perfect compactor for inexperienced road construction equipment operators to train on, offering intuitive controls that give it a natural feel in no time! The SSR80 is powered by a 72 hp Cummins engine and weighs in at 15,752 lbs. The power to weight ratio set up for the SSR80 roller gives you the perfect density for your target compaction!

Our Sany Compactors For Sale

Sany SSR 120C Compactor Specs

MACHINE PARAMETERS

Engine

Engine Make:
Yanmar

Engine Model:
4TNV98CT-VSY

Emission Standard:
Tier 4 Final / EU Stage V

Rated Gross Power:
72 HP @ 2,100 RPM

Max Torque:
214 lb-ft @ 1,350 RPM

Low Idle / High Idle: 1,000 / 2,250 RPM

Performance

Max Travel Speed (mph):
0–6 mph

Gradeability (Smooth Drum):
50%

Gradeability (Padfoot):
40%

Articulation:
+/- 37º

Oscillation Angle:
+/- 12º

Weight

Operating Weight (metric tons):
7.14

Operating Weight (lbs):
15,752

Weight with Padfoot Kit:
17,130 lbs

Vibratory System

Frequency:
29.5 / 33.5 Hz

Amplitude:
1.9 / 1.2

Static Linear Load:
125 lbs/in

Centrifugal Force:
29,675 / 24,729 lbs

Hydraulic

Hydraulic Tank Capacity:
17.2 gal

Vibratory Drum Capacity:
2.6 gal

Drum Final Drive (Reducer):
1.6 gal

Axle Final Drives:
0.5 gal

Rear Axle:
5.3 gal

Dimensions

Overall Length (ft/in):
16' 11"

Wheelbase (ft/in):
8' 9"

Overall Height (Smooth Drum) (ft/in):
10' 0"

Overall Height (Padfoot) (ft/in):
10' 3"

Drum Width (ft/in):
5' 6" (66")

Overall Width (ft/in):
6' 0"

Ground Clearance (ft/in):
1' 3"

Drum Diameter (ft/in):
4' 0"

Drum Shell Thickness (in):
0.8"

Inside Turning Radius (ft/in):
10' 8"

Min. Outside Turning Radius (ft/in):
16' 3"

Curb Clearance (ft/in):
1' 3"

Compactors for sale

See More Specs

Types of Compactors

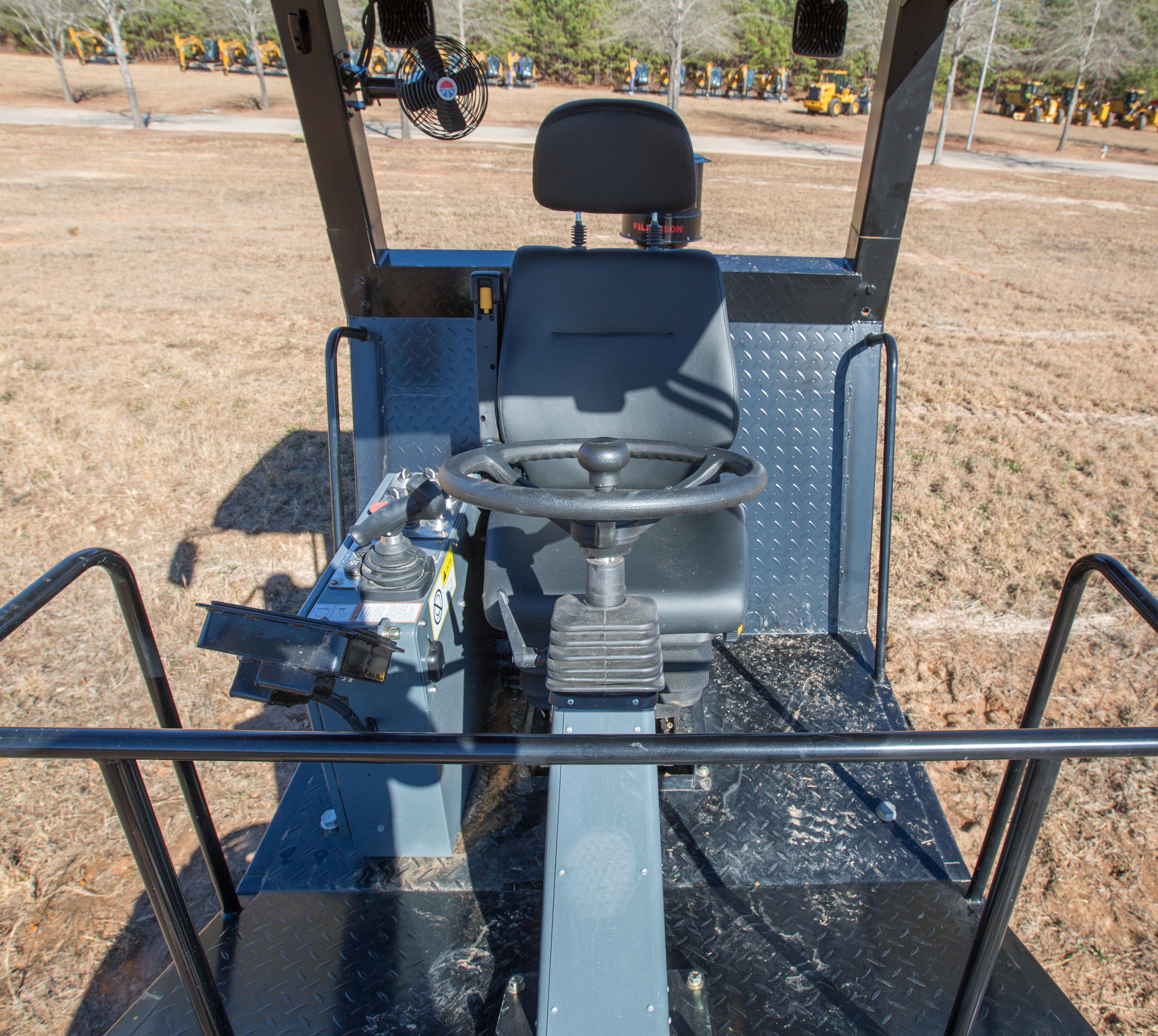

Sany SSR120C Compactor Features

Steering wheel control for simple and easy operation
Cummins Powered for dependable performance
Clear lines of sight, back up camera, and air suspension seat offer operator comfort and job site safety
Smooth drum standard pad foot shell kit available

SANY SSR80 Compactor Parts

sany-ssr80-vibratory-compactor-parts-for-sale

Here at Newman Tractor, our Parts Department is always ready to answer questions about your SANY SSR80 Compactor and deliver the parts you need, when you need them. Get your order started by calling us at 859.485.8500 today!

Looking for A Used Sany Compactor?

Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used Sany compactor, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models and ages. Use the button below to view our full inventory of used motor graders.

USED COMPACTORS FOR SALE

RENT A SANY COMPACTOR
