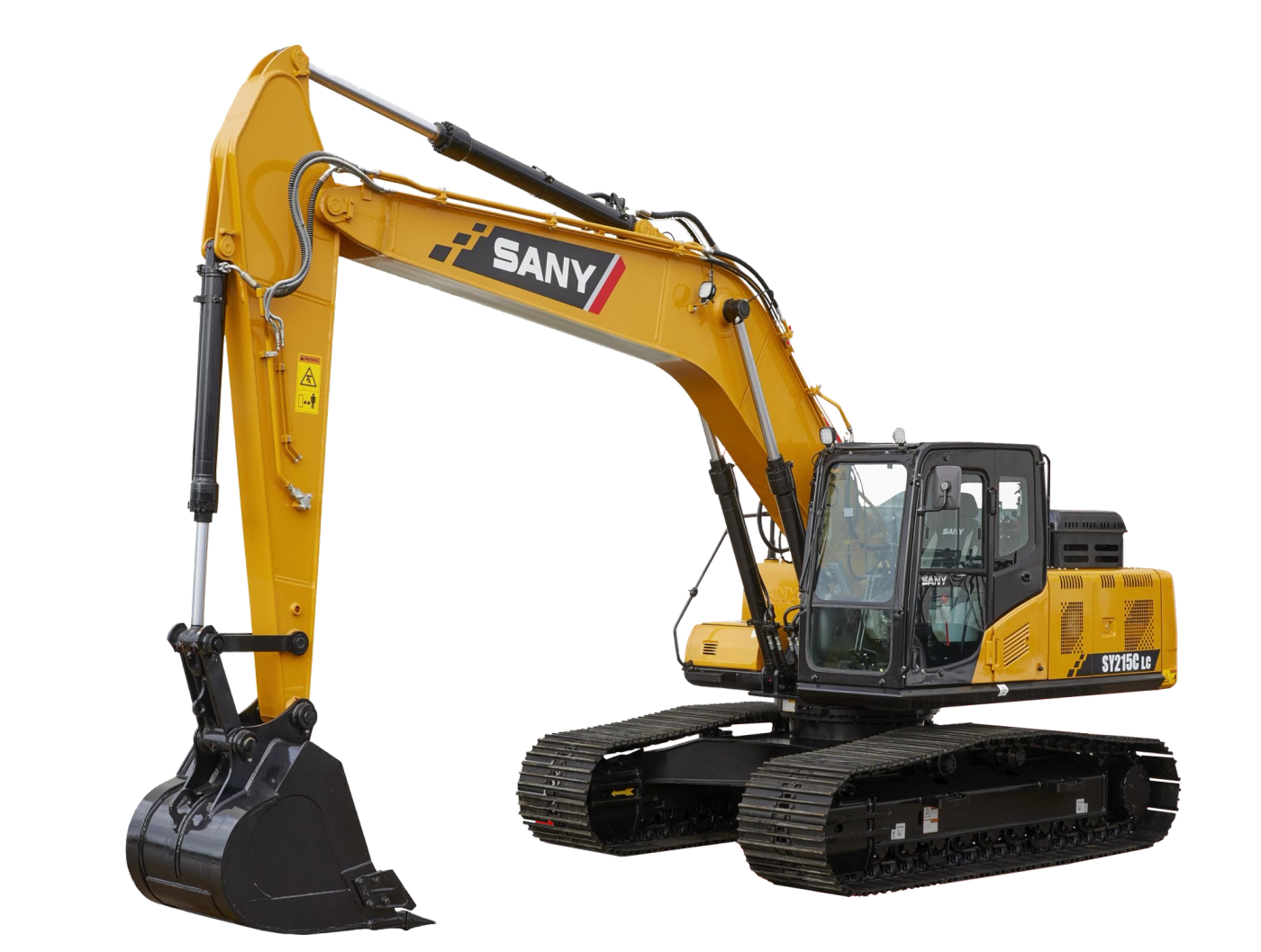

Sany SY215C Excavator
Finance a brand new Sany SY215C excavator today with America's best 5 year 5,000 warranty! We've got Sany SY215LC excavators in stock and ready for your next rental or sale! Give us a call today!
Tier 4f/ Stage IV Certified
Gross Power: 164 hp / 122 kW
Operating Weight: 51,919 lb / 23,550 kg
Bucket Breakout: 28,551 lbf / 127 kN
Ground Pressure: 5.3 psi / 36.3 kPa
Dig Depth: 21' 8"
Sany SY215C Excavators For Sale
Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500
Meet the New Sany SY215C Excavator
The Sany SY215C excavator is designed to help you work efficiently while maximizing your job site productivity. The 26-ton excavator has many features to help operators achieve the balance of power, smoothness, fuel efficiency, and speed.
The 23,550 kg SY215C adopts Cummins QSB6.7-C164, with 125/1900kW/rpm power force, delivering new levels of efficiency and productivity that help you get the job done.
Sany SY215C Tech Specs
WEIGHT
Operating Weight (metric tons):
23.5
Operating Weight (lbs):
59,919

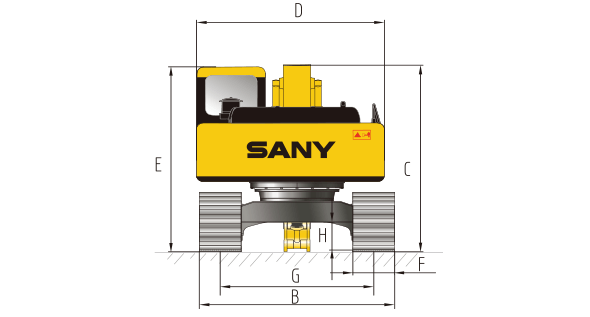

DIMENSIONS
Transport Length (ft/in):
31' 11"
Transport Width (ft/in):
10' 5"
Transport Height (ft/in):
11' 1"
Tail Swing Radius (ft/in):
9' 6"
Tail Swing Type:
Long Undercarriage

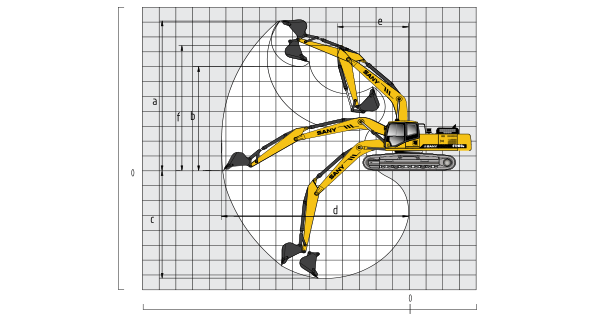

PERFORMANCE
Stick Length (ft/in)):
9' 7"
Boom Length (ft/in):
18' 8"
Max Dig Depth (ft/in):
21' 8"
Max Depth of Vertical Wall (ft/in):
19' 7"
Reach at Ground Level (ft/in):
33' 10"
Dump Height (ft/in):
21' 11"
Bucket Digging Force (lbf):
28,551
ENGINE
Engine Make: Cummins
Engine model: QSB6.7 T4F
Engine Gross HP: 163.6
HYDRAULIC
Pump Flow, implement & swing (gpm):
117.3
Max relief valve pressure (psi):
4,975
Sany SY215C Machine Features
• Engine: Cummins QSB6.7 T4 final.
• Newly designed SANY cab has maximum space, wide visibility, and easy access to controls with a full-color monitor providing easy access to machine operation information.
• Standard features include two-way auxiliary hydraulics and a pattern-control change valve to increase productivity and versatility.
• True, long undercarriage design to increase stability.
High Efficiency and Low Consumption Engine
High Economy
With a dual-pump, dual-circuit constant power control system, the engine can fully develop its power to provide a strong operating force. Optimized operation performance of the engine reduces the loss of power. The engine is designed to work in four modes according to different working conditions.
Working Efficiency Up By 8%
Innovative controller with faster computation and more accuracy reduces the response time of hydraulic elements, lowers the internal power loss of the system, and increases the operating output power.
Fuel Consumption Down By 10%
The positive flow-controlled hydraulic system considerably reduces fuel consumption. Advanced computer dynamic control technology provides a real-time match between engine power and main pump power. Four power modes maximize the fuel economy.
Digging Force Up By 9.5%
Enhanced work equipment can bear high pressure of quality hydraulic elements and circuits, and strengthen the digging force.
Low Noise Cab
With a high-rigid structure, the new cab uses damping materials that give a better noise-absorbing effect. The adoption of properly sealed windows, noise reduction design, and low-noise engine enables the machine to produce noise as low as a passenger car.
Operator Comfort
Innovative Large Cab
The innovative large cab is equipped with an adjustable seat with suspension. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.
Controls & Levers
The control levers and joysticks designed and arranged according to ergonomic can be operated easily. Each operation button is within the reach of the operator.
Silicone Rubber Shock Absorber
A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increased the cab stability while improving operator comfort.
Pressure Sealed Cab
The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.

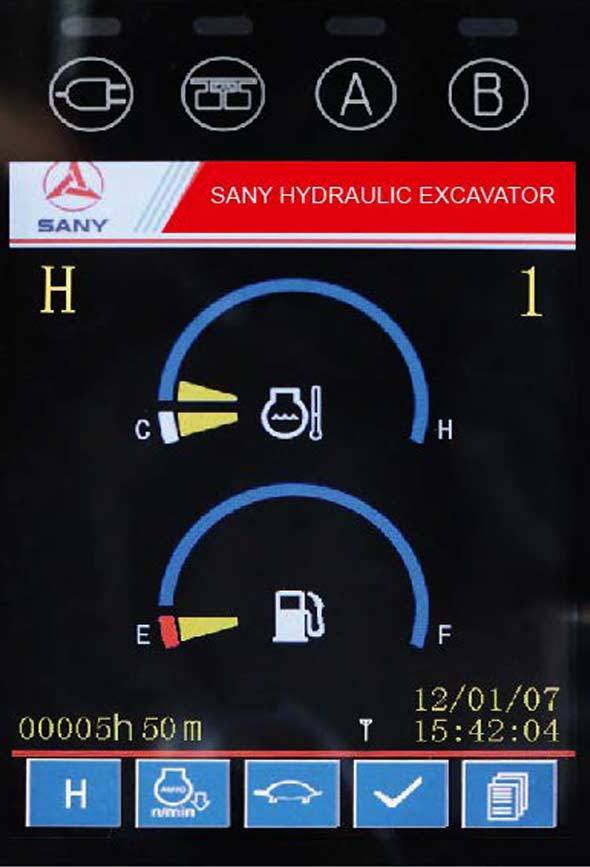

Multi-Functional LCD Monitor
Operating Priority & Fuel-saving Priority Working Modes
Heavy-duty mode: Full power output provides efficient operation.
Standard mode: 90% of the rated power reduces fuel consumption and noise.
Light duty mode: 80% of the rated power ensures fuel economy.
Break mode: 90% of the rated power reduces fuel consumption.
Innovative Features of Controller
1.) Precise controller customized for SANY.
2.) Faster computing speed, 66% higher than the last generation.
3.) Automatic self-diagnosis and recovery system.
4.) Remote Diagnosis: according to the real-time applications, shown on the centralized diagnostic monitor, determine the location of the faults that may occur remotely.
Advanced computer dynamic control technology provides a real-time match between engine power and main pump power.
Sany SY215C Additional Features
Dual-Pump, Dual-Circuit Power Control System
With a dual-pump, dual-circuit constant power control system, the Sany SY215C Excavator's Cummins QSB6.7-C164 engine develops its power to a maximum driving force. The real-time monitoring and auto-adjustment on the system conditions can ensure the engine not overload when the machine works with a full load.
The Positive Flow Controlled Hydraulic System
This system makes the main pump’s displacement proportionally adjusted according to the signal pressure from the pilot stick, achieving a real-time match of flow in the system. Give you a “what you get is what you need” experience.
Lowering the Fuel Consumption By 10%
The advanced computer dynamic control technology provides a real-time match between engine power and main pump power. Also, the four working modes, heavy-duty mode, standard mode, light-duty mode, and break mode, maximize the fuel economy.
Excellent Cooling Effect
The water-cooling turbo diesel engine, with six-cylinder, four-stroke direct-injection turbocharger, and air-air intercooler, make up a complete engine cooling system. The large capacity of 5.86L displacement also helps reduces the engine heat load and givers a longer service life.
Strong Structure
The reinforced X-frame modeled with digital tools, through finite element analysis on loading capacity realizes the tough structure.
Comfortable Operating Environment
Spacious operation cab, equipped with the sealed design, ensures the higher air pressure inside, a key to sure the cleanness.
The silicone rubber shock absorber minimizes the shock caused by the rough road and hydraulic impact, increasing the stability of the cab.
The top plate of the cab is punch-formed with a thick high-strength steel sheet integrated with reinforced ribs, together with the hydraulic lockout control, which prevents accidents and creates a safer operating environment.
Sany SY215C Excavator Parts
Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY215C excavator and deliver the parts you need, when you need them. Get your order started by calling us at 859.888.1588

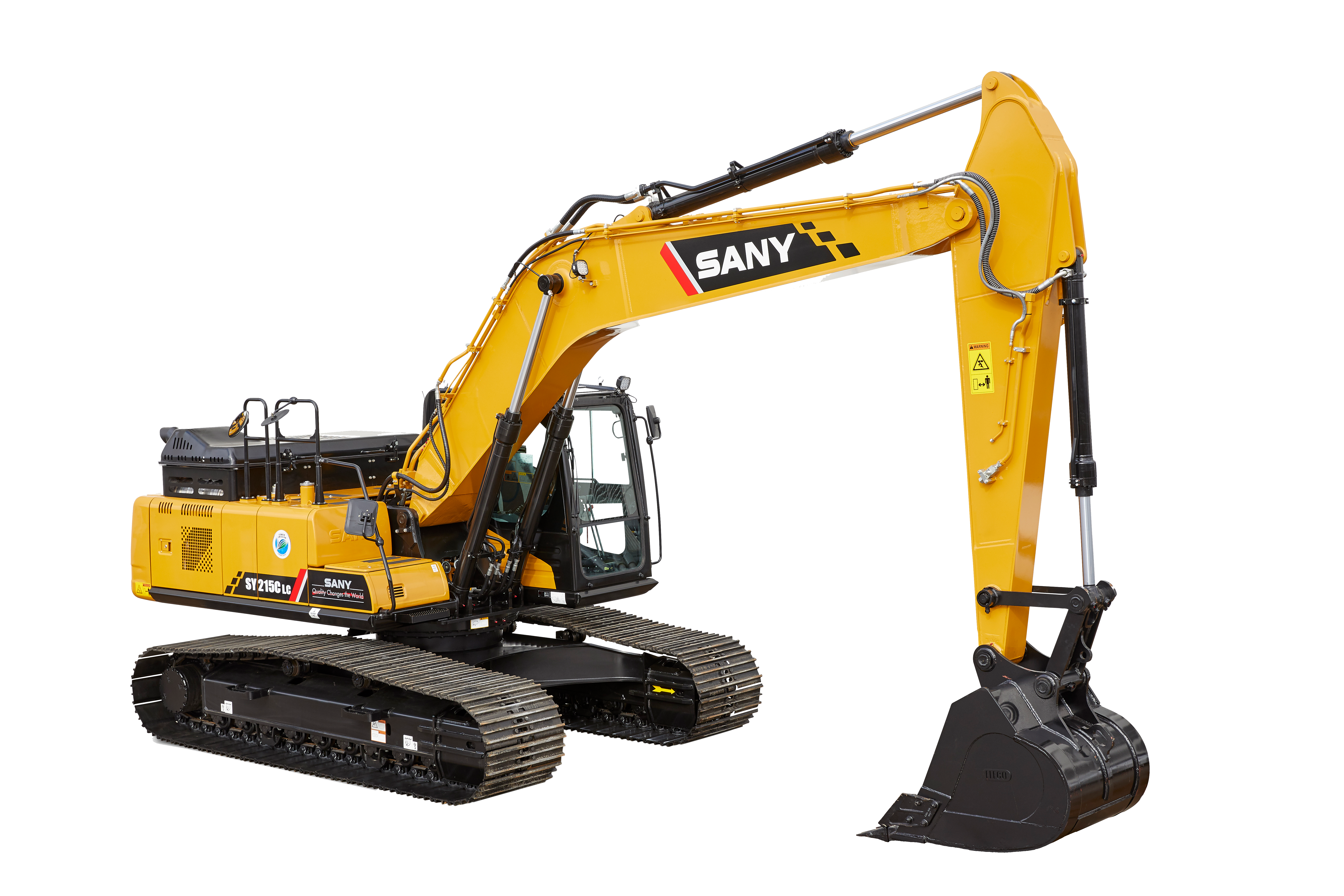

Looking for A Used Sany SY215C Excavator?
Buying or renting used makes sense for companies on a tight budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used excavator, Newman Tractor provides the fastest and most cost-effective solution to suit your needs. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models, and ages. Use the button below to view our full inventory of used excavators.
