Sany SY265C Excavator
Finance a brand new Sany SY265C excavator today with America's best 5 year 5,000 warranty! We've got Sany SY265C excavators in stock and ready for your next rental or sale! Give us a call today!
Tier 4f/ Stage IV Certified
Gross Power: 194.4 hp / 145 kW
Operating weight: 59,525 lbs / 27,000 kg
Bucket Breakout Force: 42,039 lbf
Ground Pressure: 5.7 psi / 39.3 kPa
Dig Depth: 22' 0"
Sany SY265C Excavators For Sale

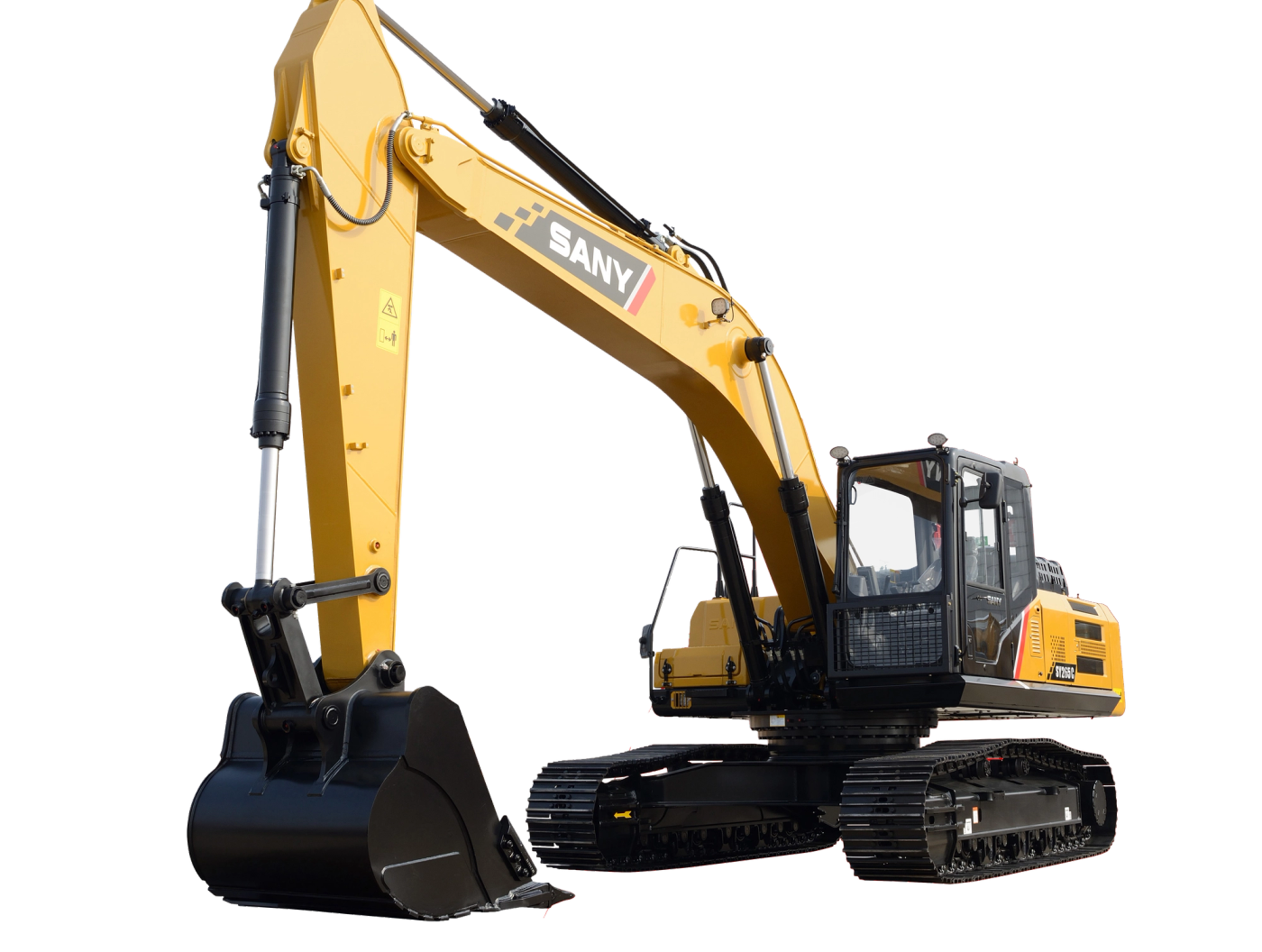

The All-New Sany SY265C Excavator
The SY265C is the new heavyweight of the SANY compact excavator line. The excavator weighs in at 59,525 lb. but can pull the workload of many medium-sized excavators. For the SY265C, Sany has specifically developed a control system with load sensing hydraulics. These hydraulics use the perfect amount of engine power ensuring maximum power and workability in any environment.
The 59,525 lb Sany SY265C adopts a Cummins QSB6.7 engine, with 194.4 hp capabilities. The excavator's engine delivers new levels of efficiency and productivity to help you get the most out of your investment.
Newman Tractor has Sany SY265C excavators in stock and ready for sale or rental. With over 40 years of experience in the heavy equipment sales and rental industry, we can do financing deals or free on-site demos! 859-485-8500

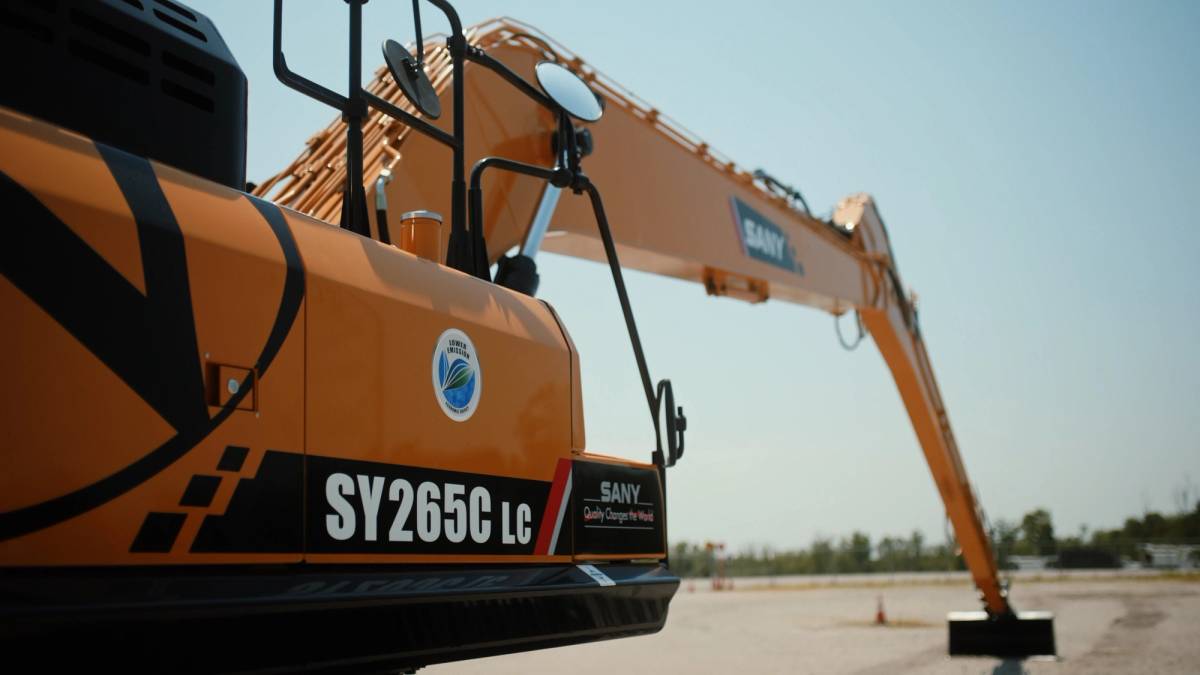

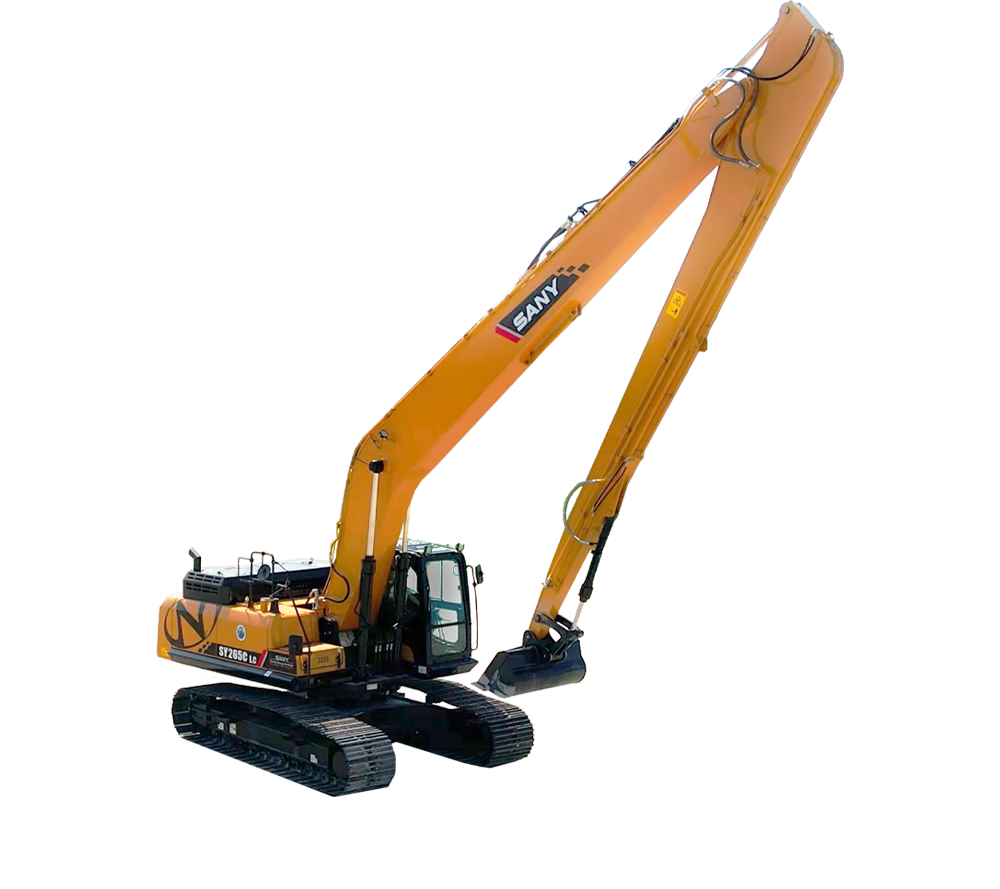

THE SANY SY265C LC LONG REACH WALKAROUND VIDEO
Sany SY265C Tech Specs
WEIGHT
Operating Weight (metric tons):
27
Operating Weight (lbs):
59,525

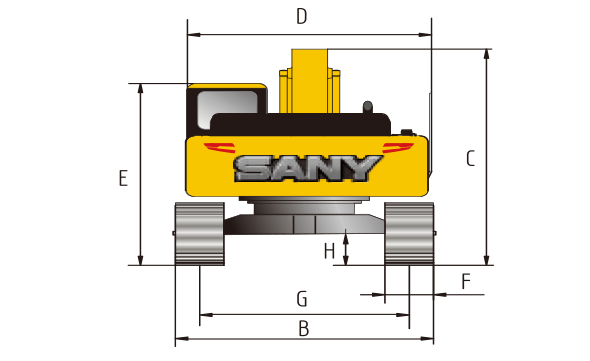

DIMENSIONS

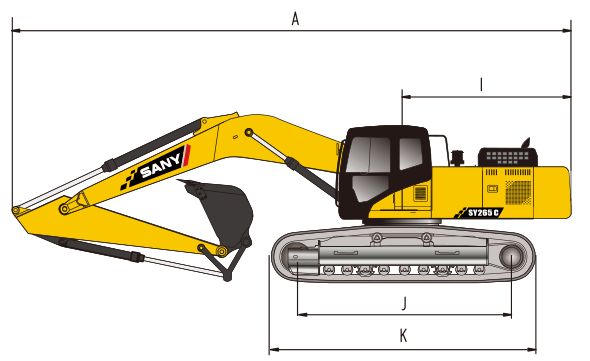

Transport Length (ft/in):
33' 9"
Transport Width (ft/in):
11' 1"
Transport Height (ft/in):
10' 6"
Tail Swing Radius (ft/in):
10' 2"
Tail Swing Type:
Long Undercarriage
PERFORMANCE
Stick Length (ft/in)):
9' 8"
Boom Length (ft/in):
19' 4"

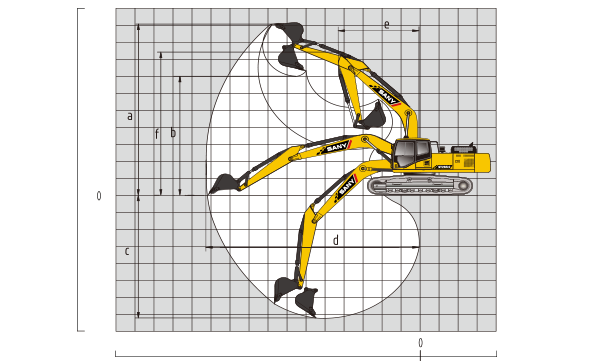

Max Dig Depth (ft/in):
22' 0"
Max Depth of Vertical Wall (ft/in):
18' 7"
Reach at Ground Level (ft/in):
33' 7"
Dump Height (ft/in):
22' 0"
Bucket Digging Force (lbf):
42,039
ENGINE
Engine make:
Cummins
Engine model:
QSB 6.7 T4F
Gross Engine HP:
194.4
HYDRAULIC
Pump Flow, implement & swing (gpm):
137.4
Max relief valve pressure (psi):
4,975
Sany SY265C Features
• The Engine on a Sany SY265C is a Cummins QSB 6.7 T4F with a Tier 4 certification.
• Sany SY265C excavators have excellent cab space, wide visibility, and easy access to controls to maximize operator comfort.
• The Sany SY265C small excavator uses an enhanced engine/hydraulic management system. This offers excellent control and high productivity without compromising fuel-efficient performance.
• Standard features on the Sany SY265C compact excavator include auxiliary hydraulics and a pattern-control change valve.
•Sany Focuses on reliability and serviceability to ensure convenient access and increased up-time on your job site.

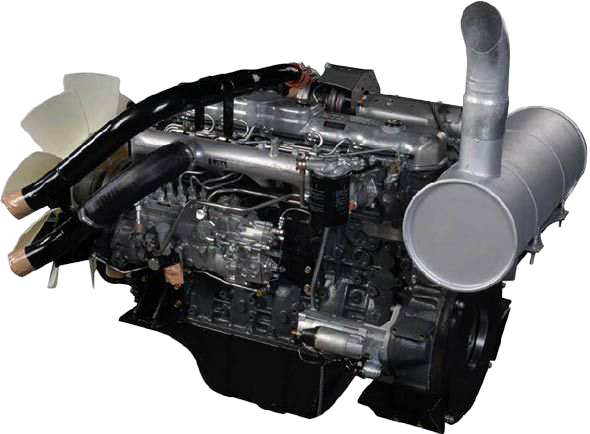

A Highly Efficient Engine with Low Fuel Consumption
High Economy
The Sany SY265C boasts a tier 4 Cummins final power plant. The engine on the SY265C also uses an advanced SLSS hydraulic system. This excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on the Sany SY265C reduce fuel consumption during operation.
Operator Comfort

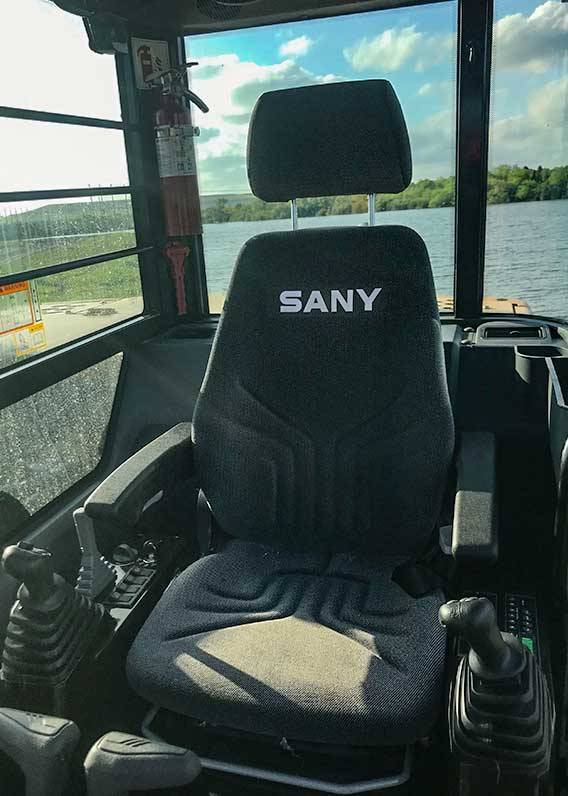

Innovative Large Cab
The Sany SY265C Excavator boasts a large cab equipped with an adjustable suspension seat. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.
Controls & Levers
The control levers and joysticks on this compact excavator are designed and arranged according to ergonomics. In other words, the excavator can be operated quite easily! Each operation button is easily within the reach of the operator.
Silicone Rubber Shock Absorber
A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increases the cab stability of the SY265C, while improving operator comfort.
Luxurious Mechanical Damping Seat
The suspension rigidity can be adjusted according to the drivers' weight, effectively absorbing the vibration came from the cab floor to improve comfort and reduce fatigue.
Pressure Sealed Cab
The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.
Sany SY265C Additional Features
Engine Customized for SANY
With a dual-pump, dual-circuit constant power control system, the Sany SY265C, Cummins `engine can fully develop its power. This excavator has the perfect combination of high efficiency and low fuel consumption under different working modes.
Comfortable Operation
The spacious and sealed cab is not only creating a quiet environment for the operator but ensures the air pressure inside is higher than the outside, preventing the dust invasion. The innovative silicone rubber shock absorber, equipped in the operator station, minimizes the shock brought by the rough road condition or hydraulic impact, considerably increasing the stability of the cab and improving the comfort of the operator.
Multiple air outlets at different levels and locations give the operators more comfort, especially in a stuffy environment.
Falling Object Protection Structure
The cab is punch-formed with a thick high-strength steel sheet, and the toughened glass-made door and window, together with the equipped seat belt, creating a quite safe environment for the operators.
Much More Extensive View
The improved cab design elements the previous narrowed blind zone, by reducing the column size and decreasing the structural strength of the cab.

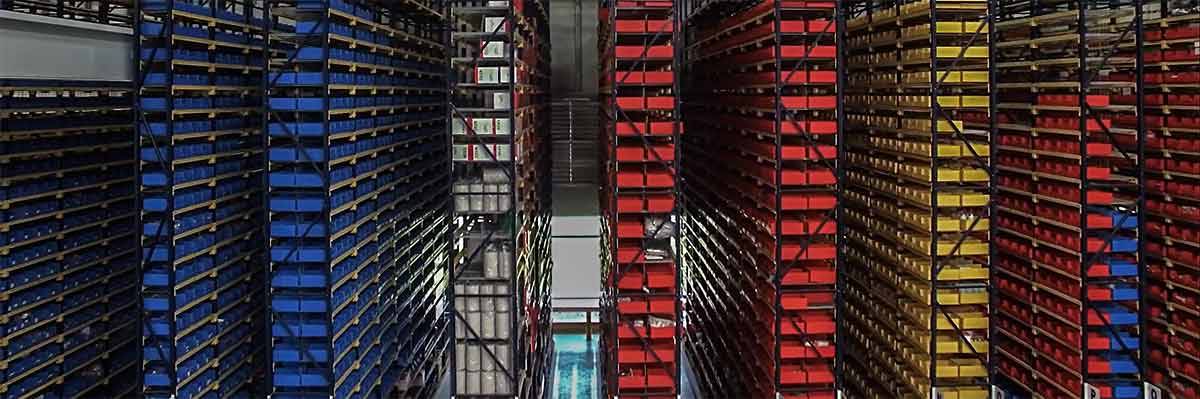

Sany SY265C Excavator Parts
Here at Newman Tractor, our Parts Department is always ready to answer questions about your Sany SY265C excavator! We can deliver the parts you need for your Sany excavator when you need them. Get your SY265C parts order started by calling us at 859.888.1588

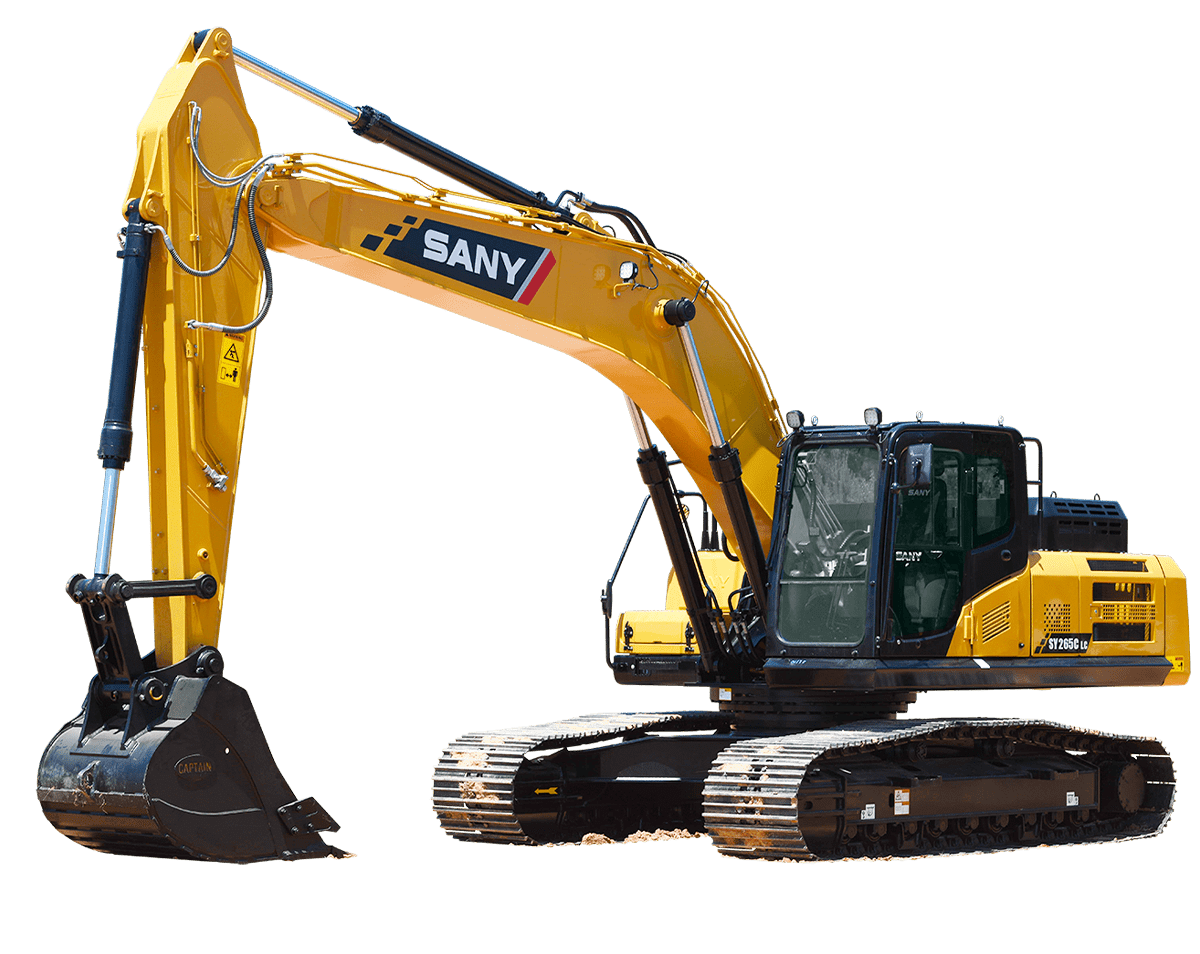

Looking for A Used Sany SY265C Excavator?
Buying or renting a used Sany SY265C makes sense for companies on a tighter budget or experiencing rapid growth. Whether you’re looking to trade-in, sell or buy a used compact excavator, Newman Tractor provides the fastest and most cost-effective solution. We carry a broad selection of pre-owned heavy equipment for sale or rent in a wide range of brands, models, and ages. Use the button below to view our full inventory of used mini excavators!
