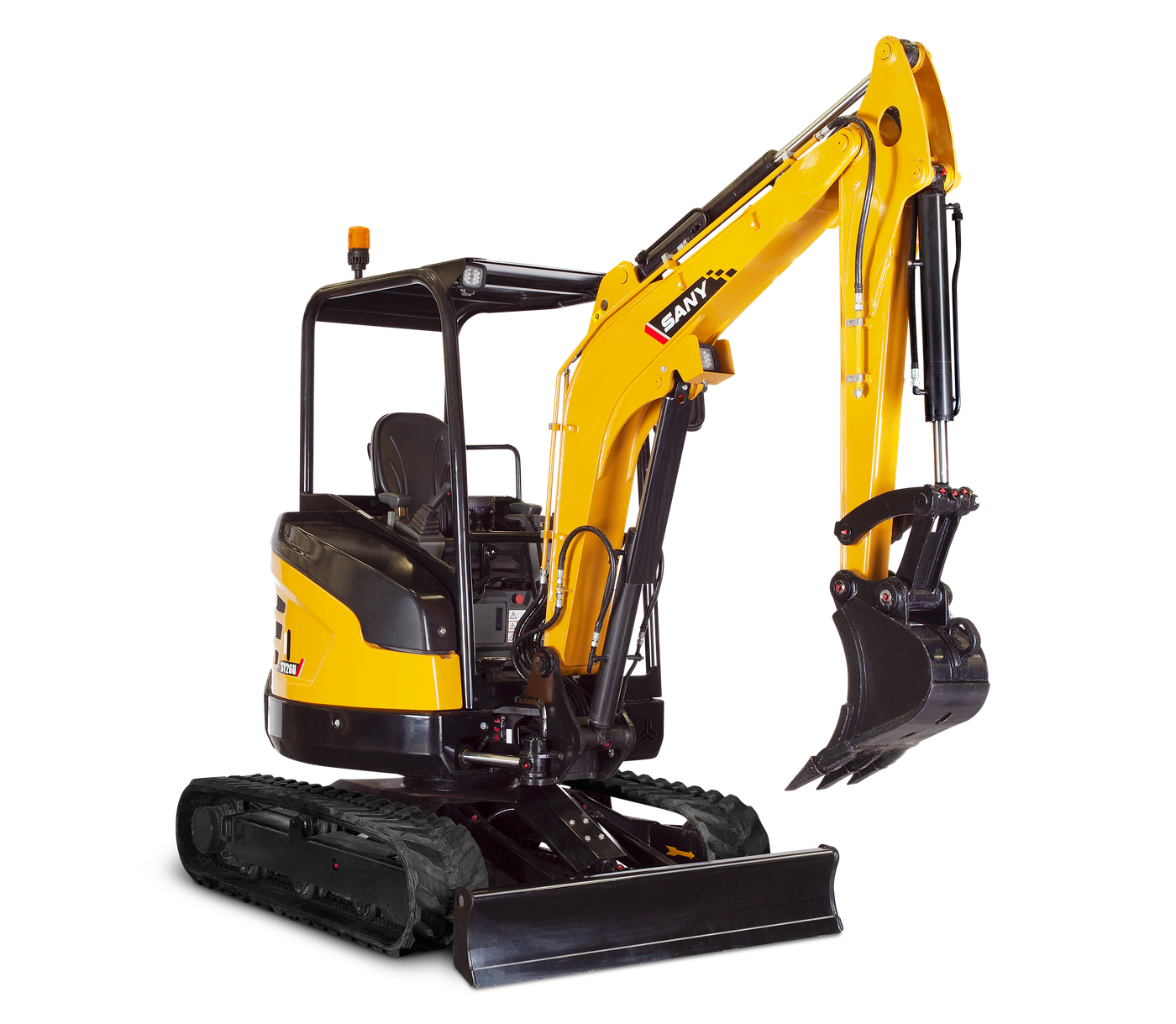

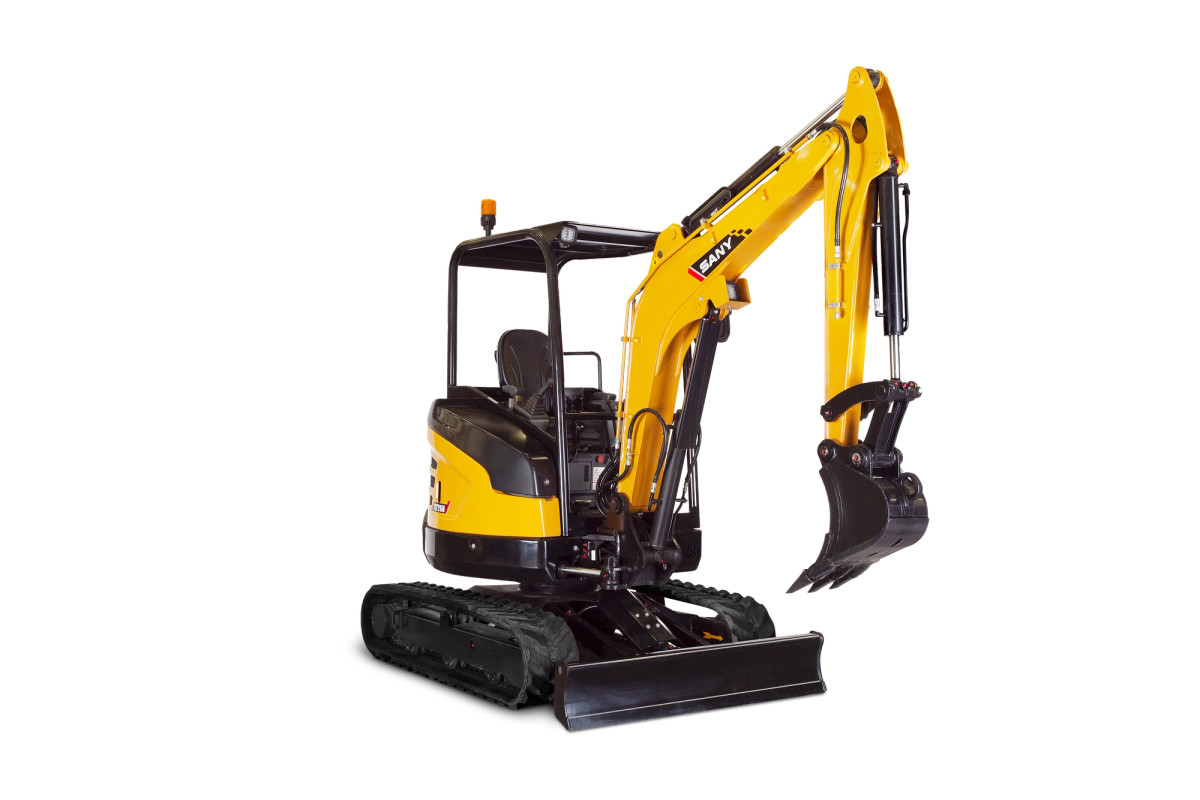

Sany SY26U Excavator

The All New Sany SY26U Excavator

Sany America's newest mini excavator is the the smallest of the Sany excavator line. However, this powerful mini excavator offers many of the same features you'll find on the largest excavators in the Sany Lineup! The Sany SY26U is a zero tail swing excavator. This allows you to work more efficiently on demanding job sites and in tighter working environments. The Sany SY26U excavator has many features to help operators achieve the balance of size, flexibility, fuel efficiency and portability!

Newman Tractor is an authorized Excavator dealership with over 40 years of experience in the construction equipment sales and rental industry. We have Sany SY26U Excavators in stock, for sale or ready for rental. Call us today for Sany SY26U financing deals or for a free on-site demo! 859-485-8500

Weight

Operating Weight (metric tons):

2.76

Operating Weight (lbs):

6,085

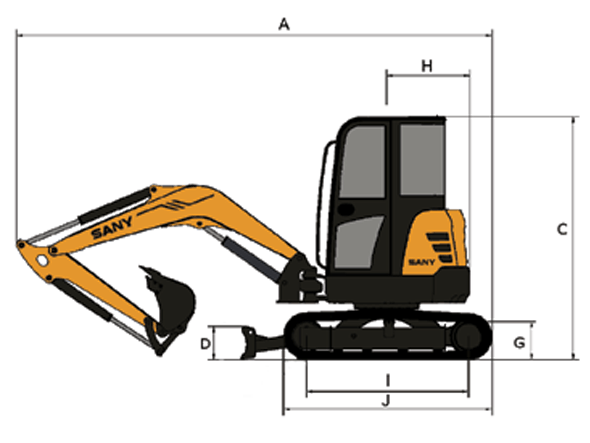

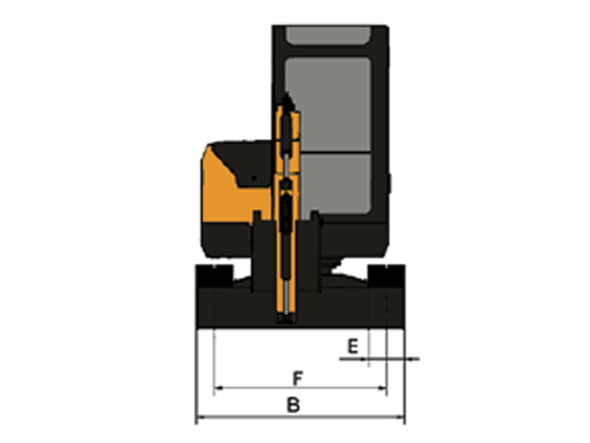

Dimensions

Transport Length (ft/in):

14' 1"

Transport Width (ft/in):

5' 1"

Transport Height (ft/in):

8' 0"

Tail Swing Radius (ft/in)

2' 7"

Tail Swing Type:

Zero Tail Swing

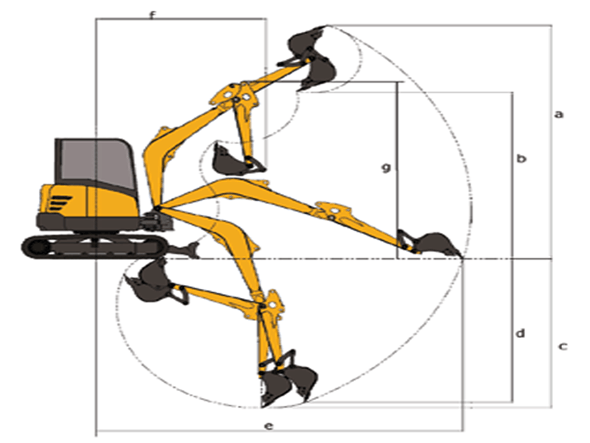

Performance

Stick Length (ft/in):

4' 3"

Boom Length (ft/in):

6' 11"

Max Dig Depth (ft/in):

9' 3"

Max Depth of Vertical Wall (ft/in):

8' 6"

Reach at Ground Level (ft/in):

15' 11"

Dump Height (ft/in):

10' 2"

Boom Swing, right/left (deg):

64° / 46°

Bucket Breakout Force (lbf):

6,274

Engine

Engine Make:

Yanmar

Engine Model:

3TNV80F

Engine Net HP:

19.4

Hydraulics

Pump Flow, Implement & Swing (gpm):

20.6

Max Relief Valve Pressure (psi):

3,553

Sany Excavators For Sale

See More Specs

Sany SY26U Machine Features

• The Sany SY26U comes with a Yanmar 19.4 hp engine.

• This mini excavator was designed for efficiency and productivity while reducing fuel consumption.

• Standard features include two-way hydraulics, backfill blade and a pattern-control change valve to increase productivity and versatility.

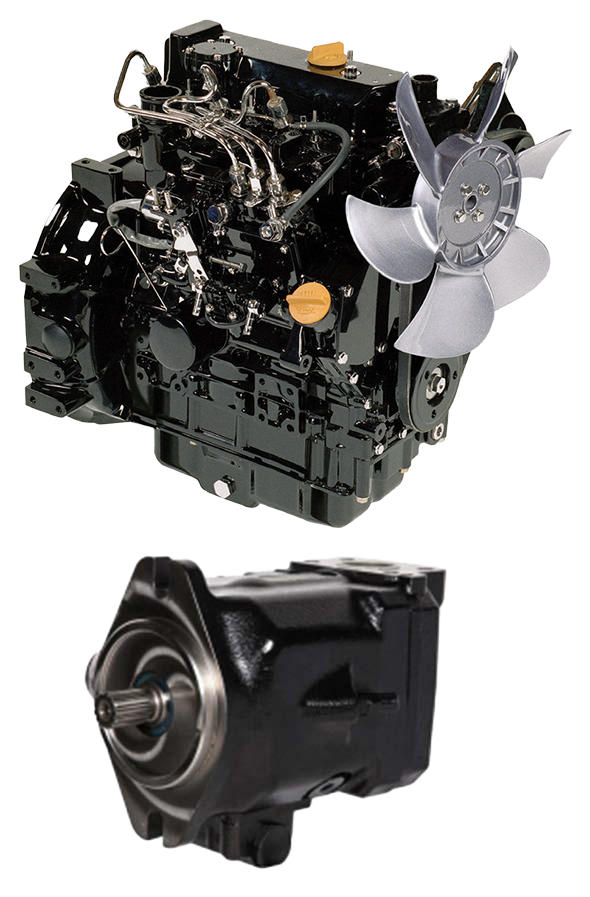

High Performance Engine

The engine output power is 19.4 hp with the increased hydraulic power and improved fuel efficiency.

SY26U adopts the engine customized for SANY. The engine with four­ cylinder, four-stroke direct-injection turbocharger provides strong operating power for the machine.

Optimized Power Control

The engine is designed with four working modes. The working mode can be changed on the monitor according to different applications which can maximize the operating efficiency and reduce the fuel consumption.

Electric Control Module for Best Engine Efficiency

The electric control module has the capability of making quick response to the change of operating variables in order to achieve optimum engine performance. It is fully integrated with sensors of fuel, engine oil, air intake, coolant and exhaust system to conduct real-time monitoring and auto-adjustment on the system conditions, which can ensure the engine won't overload when the excavator works with full load.

Operator Comfort

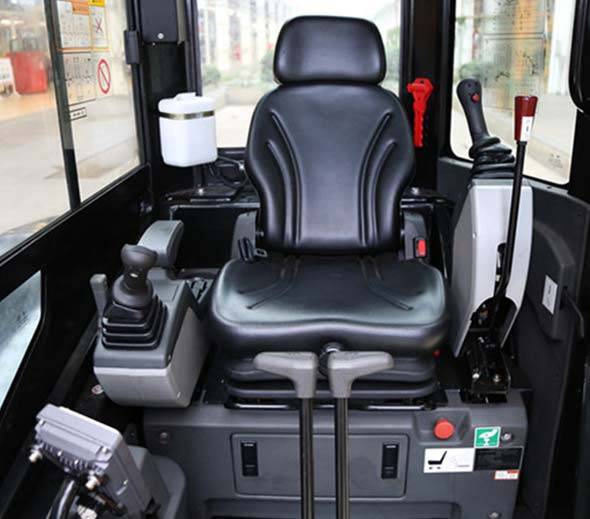

Innovative Large Cab

The innovative large cab is equipped with an adjustable seat with suspension. The seat can be adjusted as desired. The rigidity of seat can also be adjusted accord­ing to the operator's weight.

Controls & Levers

The control levers and joysticks designed and arranged according to ergonomic, can be operated easily. Each operation button is within the reach of operator.

Silicone Rubber Shock Absorber

A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increased the cab stability while improving operator comfort.

Pressure Sealed Cab

The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.
