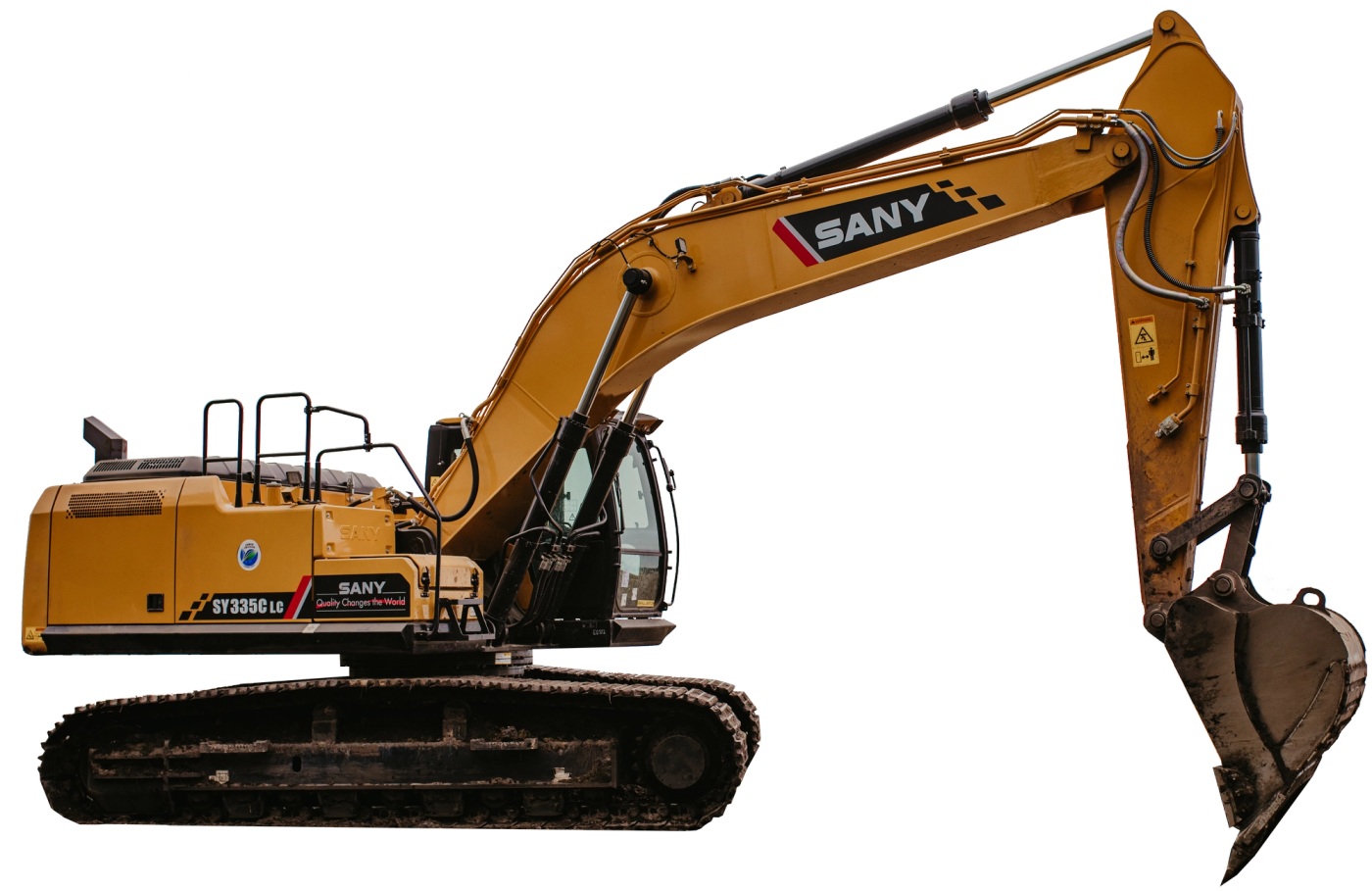

Sany SY335C LC Excavator
Secure your brand new SANY SY335C excavator with America's best 5-year 5,000 warranty! The all-new SANY SY335C excavators are available for order today! Give us a call to grab yours!
Tier 4f/ Stage V Certified
Rated Power: 280 net hp / 209 kW
Operating Weight: 74,075 lbs / 33,600 kg
Bucket Breakout: 45,861 lbs / 204 kN
Ground Pressure: 8.8 / 60.3 kPa
Dig Depth: 22' 4"
UNVEILING THE ALL NEW 2023 SANY SY335C LC
Meet the All -New SANY SY335C LC Excavator
The SANY lineup aims to keep a steady set of upgraded specs for each of its models and you asked... so they answered! The SANY SY335C LC excavator meets the needs of the customer and sits solidly between its siblings the 265 and 365.
Rolling in with 280 net hp out of a Tier 4/ Stage 5 L9 Cummins engine this beast of a machine packs a powerful punch. With this excavator on your job site, you'll have no shortage of power or comfort. The operator features that come standard in this SANY are unbeaten. Keyless start, Bluetooth 10.4" monitor, heated air-ride seat, and adjustable control panels to name a few. Let's dive deep into this SY335! 22' 4" deep that is... with its extensive dig depth.
SANY SY335C TECH SPECS
WEIGHT
Operating Weight (metric tons):
33.6
Operating Weight (lbs):
74,075

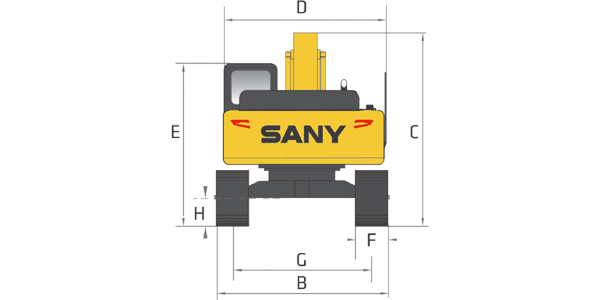

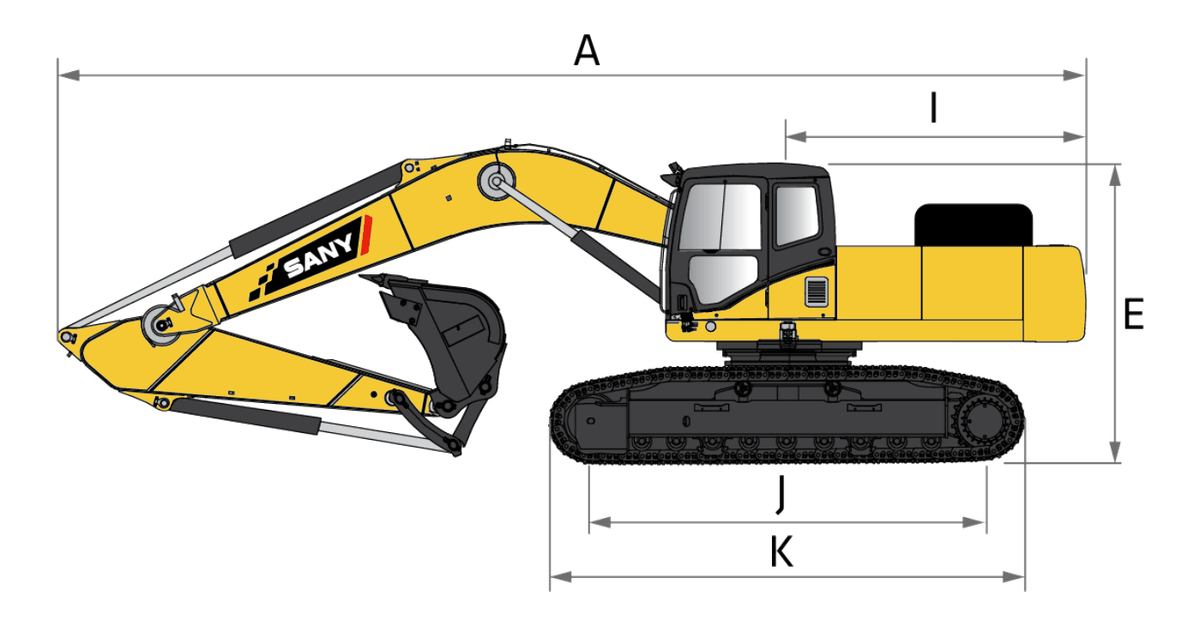

DIMENSIONS
Transport Length (ft/in):
35' 0"
Transport Width (ft/in):
11' 2"
Transport Height (ft/in):
11' 5"
Tail Swing Radius (ft/in):
10' 11"
Tail Swing Type:
Long Undercarriage
PERFORMANCE
Stick Length (ft/in)):
10' 6"
Boom Length (ft/in):
20' 2"
Max Dig Depth (ft/in):
22' 4"
Max Depth of Vertical Wall (ft/in):
19' 0"
Reach at Ground Level (ft/in):
35' 8"
Dump Height (ft/in):
24' 2"
Bucket Digging Force (lbf):
45,861
ENGINE
Engine make:
Cummins
Engine model:
QSL9 T4F
Gross Engine HP:
280.3
HYDRAULIC
Pump Flow, implement & swing (gpm):
147
Max relief valve pressure (psi):
4,975
Sany SY335C Machine Features
• Engine: Cummins QSL9, Stage 5
• SANY cab has excellent space, wide visibility, and easy access to controls to maximize operator comfort.
• Enhanced engine/hydraulic management system marries excellent control and high productivity with fuel-efficient performance.
• Standard features include two-way thumb-controlled auxiliary hydraulics, a pattern-control change valve, and a rearview camera.
• Focus on reliability and serviceability ensures convenient access and increased uptime.
A HIGHLY EFFICIENT ENGINE WITH LOW FUEL CONSUMPTION
High Economy
The Sany SY335C boasts a tier 4 Cummins power plant. The engine on the SY335C also uses an advanced SLSS hydraulic system. This excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on the Sany SY335C reduce fuel consumption during operation.
SANY SY335C Additional Features

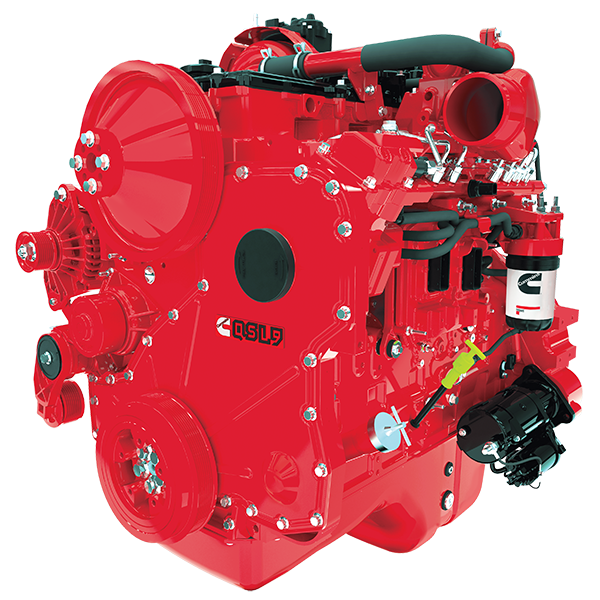

Engine Optimized for SANY
The all-new SY335C leverages its Cummins L9 Stage V engine to power its 74k lbs. and push out 280 net hp. Turbo-charged with and charge air cooler, auto-idle, and 70% off-level capabilities keep this engine running strong all day long on any terrain. With service in mind, this engine's 500-hour oil-change intervals ensure this machine works for you, not the service team!
Powerful Travel Ability
The 335 sports a 2* axial piston motor with a parking brake, making the travel motor driving force increase to 245KN. With two travel speed settings with quick selection in the cab and 35-degree capabilities means this machine moves!
Three Working Mode Selections
Digital power and tool selection offer operators a choice depending on the application. Low, Standard, and High power options can improve efficiency and fuel consumption in the right scenarios.
Comfortable Operation
The spacious and sealed cab not only offers noise reduction for the operator but also ensures the air pressure inside is higher than the outside, preventing dust invasion. The innovative silicone rubber shock absorber, equipped in the operator station, minimizes the shock brought by the rough road condition or hydraulic impact, considerably increasing the stability of the cab and improving the comfort of the operator.
Safety Features
Operators' safety is of utmost importance, and this is reflected in the construction of the machine. Designed for safety with simple entry and exit with features like handrails, toughened glass doors, windows, and transparent overhead hatches to withstand harsh working conditions. Equipped with a seat belt and all the bells and whistles this machine creates a quite safe environment for the operators. Optional screens for the front, side, and rear offer additional protection.
Clear View
Equipped with rearview and right-side view cameras along with 8 high-power LED lights ensure the operator has no shortage of sight, day or night.
Easier Monitoring & Maintenance
Equipped with system monitoring and alarms integrated into the 10.4" diagnostic LCD monitor provide superior machine awareness. The ground engine dipstick also offers quick maintenance checks. Attachment safety and usage warning ensure your investment stays in peak performance for the long haul.
