Sany SY365C Excavator
Finance a brand new Sany SY365C excavator today with America's best 5 year 5,000 warranty! We've got Sany SY365C excavators in stock and ready for your next rental or sale! Give us a call today!
Tier 4f/ Stage IV Certified
Rated Power: 275 hp / 205 kW
Operating Weight: 80,910 lb / 36,700 kg
Bucket Breakout: 43,163 lbf / 192 kN
Ground Pressure: 7.1 psi / 48.7 kPa
Dig Depth: 23' 11"
Sany SY365C Excavators For Sale
Newman Tractor is an authorized Sany equipment dealership with over 40 years of experience in the construction equipment sales and rental industry. Call us today for financing deals or for a free on-site demo! 859-485-8500
Meet the New Sany SY365C Excavator
The Sany SY365C excavator is designed to help you work efficiently while maximizing your job site productivity. The 40-ton excavator has many features to help operators achieve the balance of power, smoothness, fuel efficiency, and speed.
The 36,700 kg SY365C adopts Cummins QSL9 engine, with 205 kW of power, delivering new levels of efficiency and productivity that helps you get the most out of your investment.
Sany SY365C Tech Specs
WEIGHT
Operating Weight (metric tons):
36.7
Operating Weight (lbs):
80,910

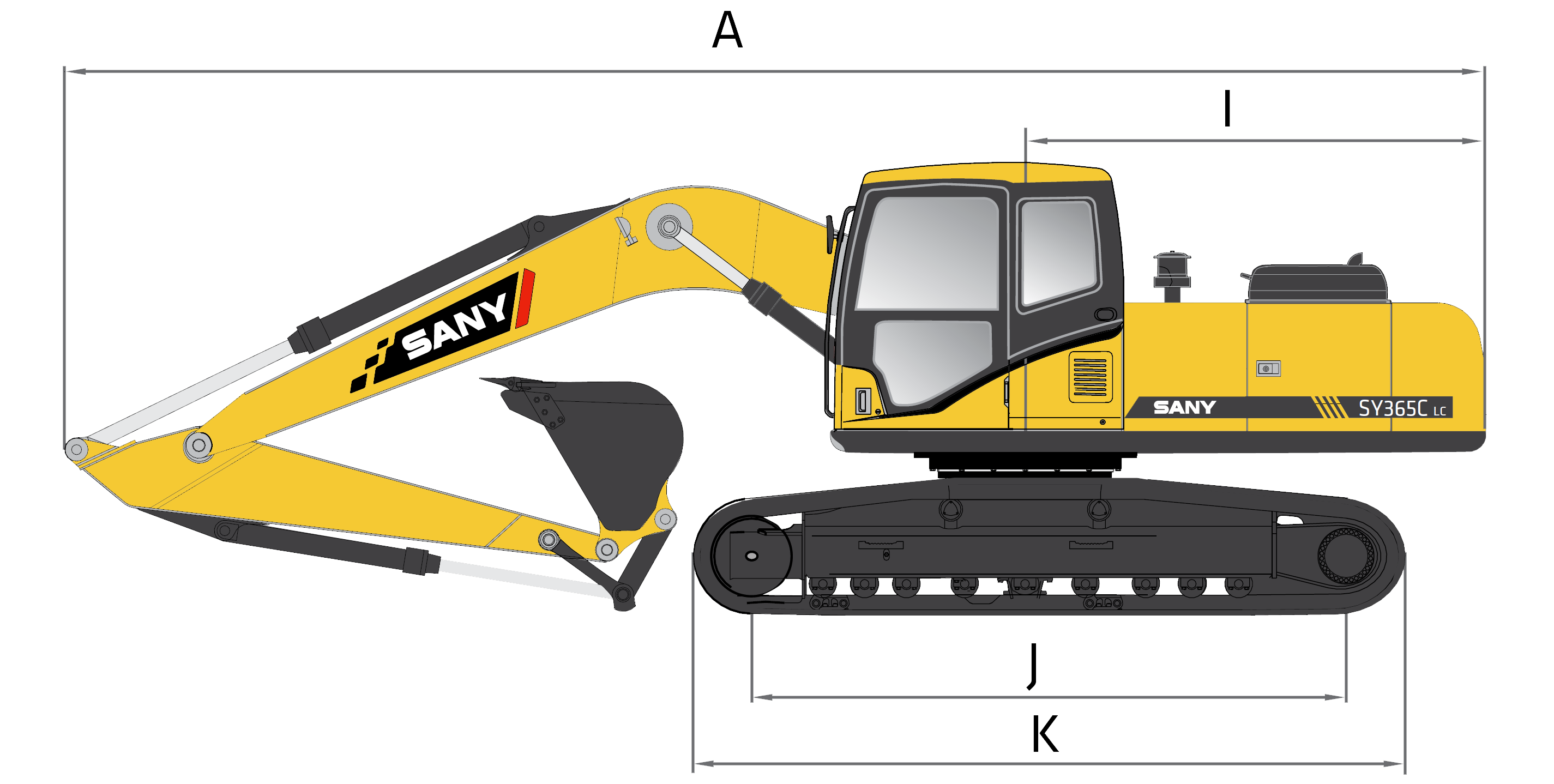

DIMENSIONS
Transport Length (ft/in):
36' 5"
Transport Width (ft/in):
11' 1"
Transport Height (ft/in):
11' 0"
Tail Swing Radius (ft/in):
10' 10"
Tail Swing Type:
Long Undercarriage
PERFORMANCE
Stick Length (ft/in)):
10' 5"
Boom Length (ft/in):
21' 3"
Max Dig Depth (ft/in):
23' 11"
Max Depth of Vertical Wall (ft/in):
21' 3"
Reach at Ground Level (ft/in):
36' 5"
Dump Height (ft/in):
23' 5"
Bucket Digging Force (lbf):
43,163
ENGINE
Engine make:
Cummins
Engine model:
L9 Stage T4F
Gross Engine HP:
275
HYDRAULIC
Pump Flow, implement & swing (gpm):
195.5
Max relief valve pressure (psi):
4,975
Sany SY365C Machine Features
• Engine: Cummins QSL 9, Tier 4 final
• SANY cab has excellent space, wide visibility, and easy access to controls to maximize operator comfort.
• Enhanced engine/hydraulic management system marries excellent control and high productivity with fuel-efficient performance.
• Standard features include two-way thumb-controlled auxiliary hydraulics, a pattern-control change valve, and a rearview camera.
• Focus on reliability and serviceability ensures convenient access and increased uptime.
High Efficiency and Low Consumption Engine
High Economy
With a dual-pump, dual-circuit constant power control system, the engine can fully develop its power. The perfect combination of this two realizes the heavy-duty mode with a large workload, the standard mode with auto-adjusted engine speed and light-duty mode, high efficiency and low fuel consumption while optimizing the combustion.
Auto Deceleration System
The function of auto deceleration or acceleration reduces fuel consumption by 5-10%. When an operation has been stopped for 3 seconds, the engine speed drops automatically to idle level and maintains the idling state. When the operation is resumed by maneuvering the control levers, the engine speed will increase to the set rpm within 0.1 seconds. The working capability is resumed instantly.
Pressure Sealed Cab
The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.
Operator Comfort
Innovative Large Cab
The innovative large cab is equipped with an adjustable seat with suspension. The seat can be adjusted as desired. The rigidity of seat can also be adjusted according to the operator's weight.
Controls & Levers
The control levers and joysticks designed and arranged according to ergonomic, can be operated easily. Each operation button is within the reach of operator.
Silicone Rubber Shock Absorber
A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increased the cab stability while improving operator comfort.
Luxurious Mechanical Damping Seat
The suspension rigidity can be adjusted according to the drivers' weight, effectively absorbing the vibration came from the cab floor to improve comfort and reduce fatigue.
Multi-functional LCD Monitor
Large LCD monitor can ensure safe, precise and stable operation. This LCD can be easily read from various angles under different light conditions.
1) Working mode 5
2) Throttle gear
3) Engine coolant temp gauge
4) Fuel level gauge 8
5) Working hours, function on/off menu
6) Failure code
7) System clock
8) Function menu
Working Mode Selection
Touch the display to switch working mode
Heavy duty mode: maximum operating efficiency
Standard mode: reducing fuel consumption and noise
Light duty mode: lower fuel consumption and high economy
Breaker mode: special for hammer
Monitoring Fuction
In case any abnormality of oil amount, water temperature, hydraulic pressure, etc. should occur, failure information will be displayed on the monitor timely.
Maintenance Fuction
You will be prompted on the monitor screen the maintenance items and replacement intervals when the maintenance schedule is due.
Sany SY365C Additional Features
Engine Customized for SANY
With a dual-pump, dual-circuit constant power control system, the engine can fully develop its power. The perfect combination of this two realizes the high efficiency and low fuel consumption under the different working modes while optimizing the combustion.
Powerful Travel Ability
The latest Nabtesco large-torque travel mechanism is adopted to enhance the driving force and reliability, making the travel motor driving force increased to 214kN.
Four Working Mode Selection
The working mode could be switched according to the operation needs. The heavy-duty mode is for the maximum operating efficiency; the standard mode is for reducing the fuel consumption and noise; the light-duty mode is for lowering the fuel consumption and high economy and the breaker mode is special for the hammering condition.
Comfortable Operation
The spacious and sealed cab is not only creating a quiet environment for the operator but ensures the air pressure inside is higher than the outside, preventing the dust invasion. The innovative silicone rubber shock absorber, equipped in the operator station, minimizes the shock brought by the rough road condition or hydraulic impact, considerably increasing the stability of the cab and improving the comfort of the operator.
Multiple air outlets at different levels and locations give the operators more comfort, especially in a stuffy environment.
Falling Object Protection Structure
The cab is punch-formed with a thick high-strength steel sheet, and the toughened glass-made door and window, together with the equipped seat belt, creating a quite safe environment for the operators.
Much More Extensive View
The improved cab design elements the previous narrowed blind zone, by reducing the column size and decreasing the structural strength of the cab.
Easier Monitoring & Maintenance
Additional oil drain valve on swing mechanism makes gear oil replacement much easier.
The accessible oil filter installed far away from the engine ensures easy maintenance. The radiator, fuel tank, hydraulic oil tank, and oil pan are equipped with screw plugs at the bottom, which is convenient for discharging the exterior substance and waste liquid.
