SANY ST230V CTL

Coming Soon!

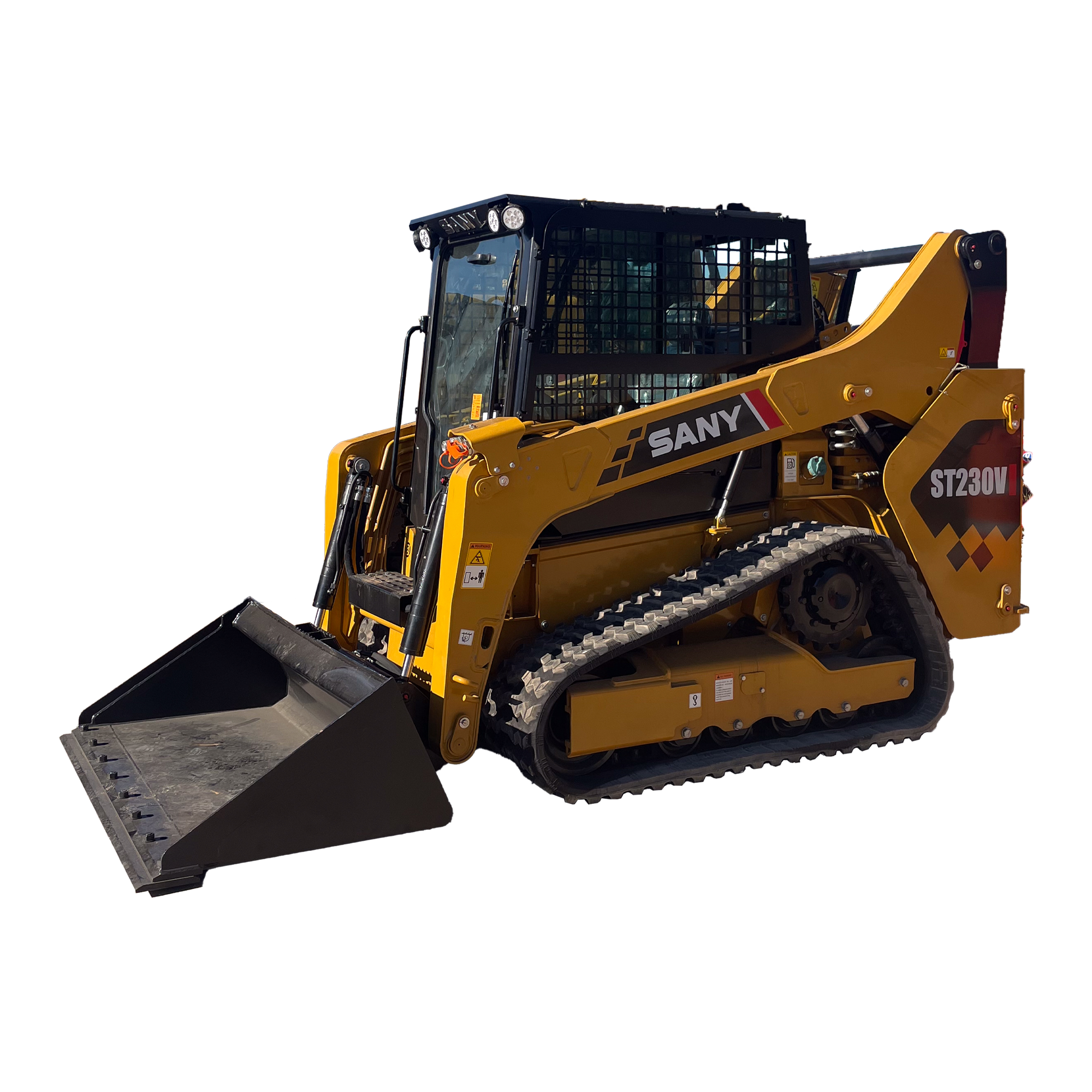

Introducing the new SANY ST230V compact track loader! Coming with America's best 3 year 3,000 warranty this machine will be ready to tackle any job you throw!

Interested in getting your hands on this machine? Give us a call!

CALL 859.485.8500

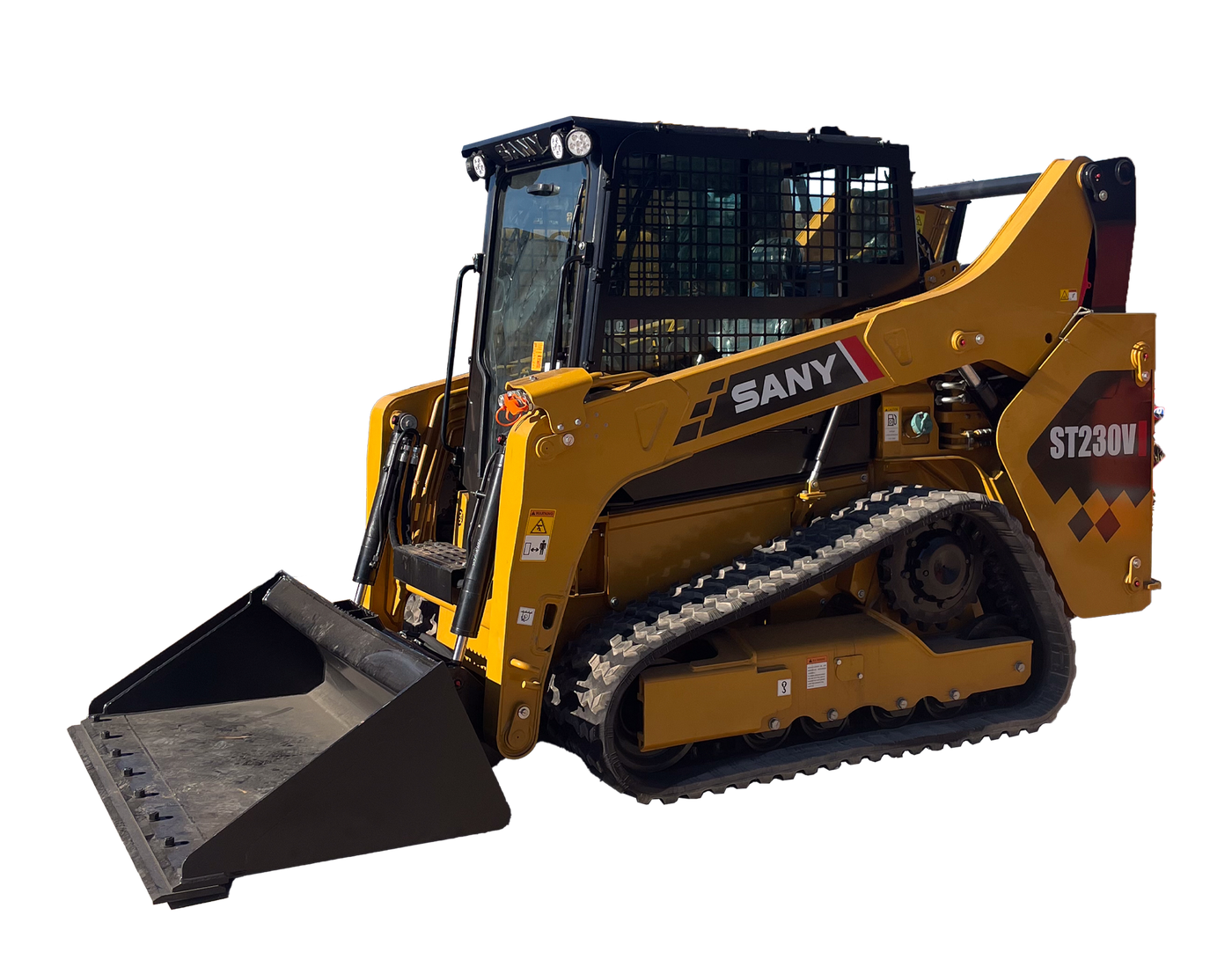

sany-st230v-skid-steer-coming-soon

Tier 4f/ Stage V Certified

Net Power: 73 hp / 54.4 kW

Operating Weight: 10,318 lbs / 4680 kg

Bucket Breakout: 5,733 lbf / 25.5 kN

Operating Capacity: 2,430 lbs / 1102 kg

Dump Height: 13 ft / 4 m

Sany Logo

SANY ST230V Skid Steer Loader Coming Soon!

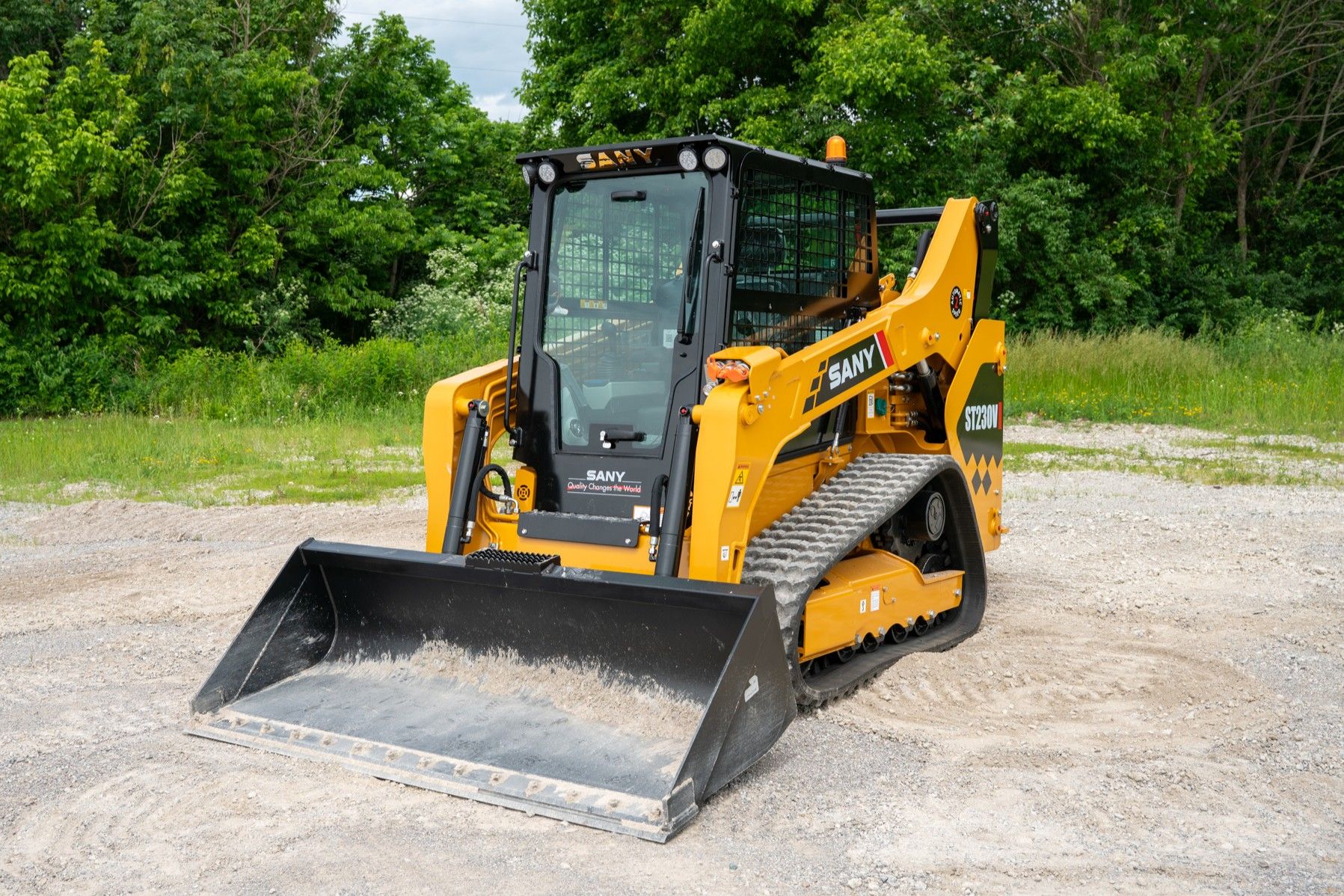

Meet the New SANY ST230V Compact Track Loader
The SANY ST230V skid loader features high efficiency, low consumption and a comfortable operating environment. This 5 ton skid steer has a wide range of applications with its versatile attachment options. Benefits & Features: High Performance & Reliability, Compact Design for Narrow Zone Operations, Strong Adaptability to Various Situations, Safe & Environmentally Friendly.

Why Newman Tractor
Newman Tractor is an authorized SANY equipment dealership with over 40 years of experience in the construction equipment sales and rental industry.
If you still need a compact track loader, check out our other skid steer options!

See Inventory

sany-st230v-on-show

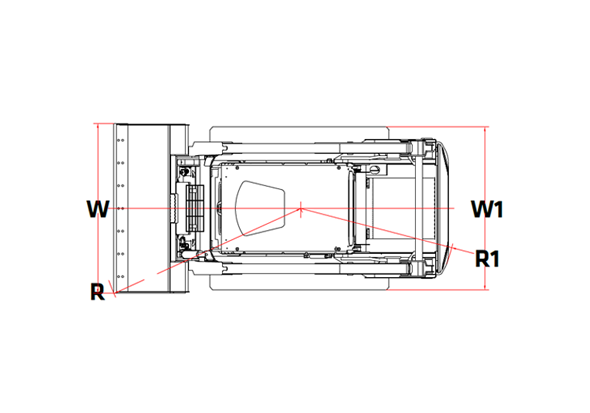

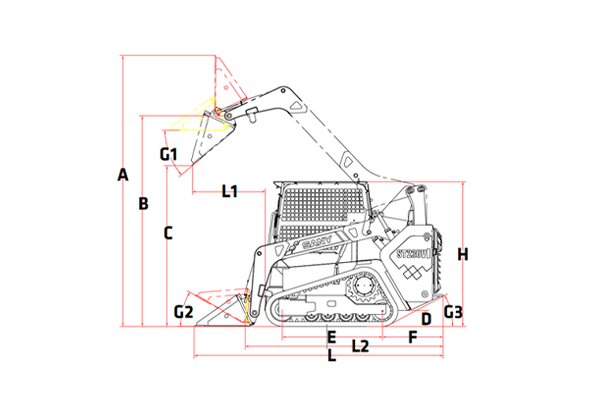

SANY ST230V Compact Track Loader Tech Specs

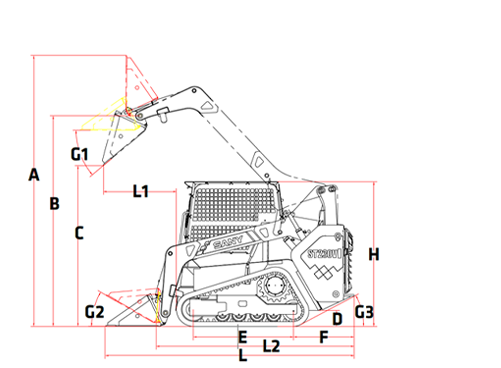

side-profile-skid-steer-profile

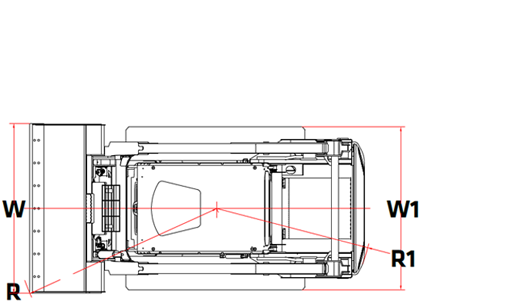

top-down-spec-diagram
Weight

Operating Weight (metric tons):

4.68

Operating Weight:

10,318 lbs / 4680 kg

Dimensions

Transport Length (ft/in):

11' 10"

Transport Width (ft/in):

5' 6"

Transport Height (ft/in):

6' 10.7"

Rubber Track Size:

320 mm / 400 mm - both have 2 pattern options

Performance

Lift Geometry:

Vertical Lift

Tipping Load:

6,943 lbs / 3,149 kg

Dump Height (ft/in):

7' 8"

Bucket Breakout Force (lbf):

5,733

Engine

Engine Make:

Yanmar

Engine Model:

4TNV98CT

Engine Net HP:

73

Hydraulics

Pump Flow, Implement & Swing (gpm):

21 (Standard Flow) / 31.6 (High Flow)

Max Relief Valve Pressure (psi):

3,336

See Skid Steer Inventory

Spec Sheet Coming Soon!

Newman Tractor Image

SANY ST230V Machine Features

• Engine: Yanmar 4TNV98CT, Tier 4 Final
• Turbocharged Power: Delivers 73 HP for tackling tough jobs with ease
• Vertical Lift Design: Provides superior reach and lift height for loading and material handling
• Spacious, Operator-Focused Cab: Features auto-temp HVAC, air-suspension seat, and pilot controls for all-day comfort
• Standard Hydraulic Quick-Coupler: Enables fast and easy attachment changes
• High-Flow Auxiliary Hydraulics: Supports a wide range of attachments for increased versatility
• Durable Undercarriage: Built with anti-derailment track rollers for stability and performance
• Two-Speed Travel: Moves at up to 8 mph for faster cycle times and efficiency

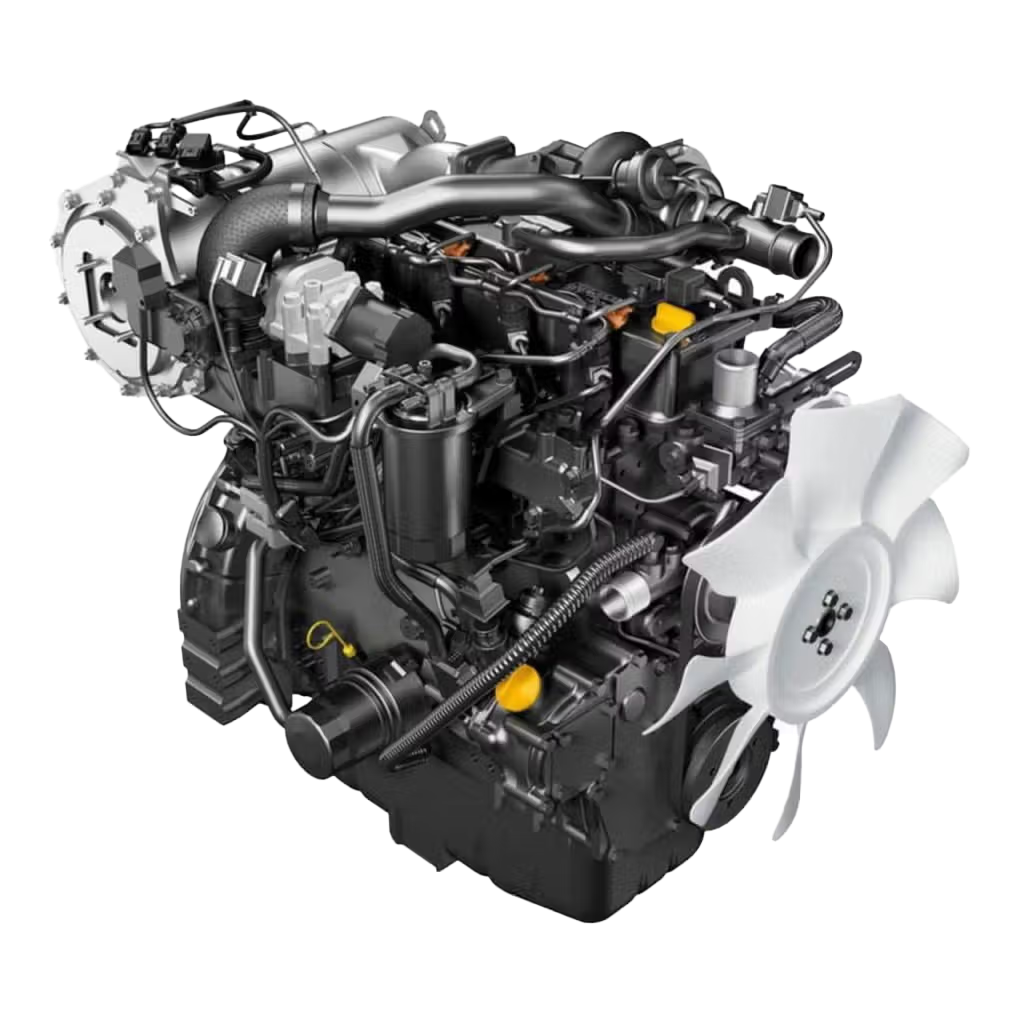

High-Performance Engine

The SANY ST230V is powered by a 73 HP Yanmar 4TNV98CT turbocharged engine, delivering exceptional power while meeting Tier 4 Final emission standards for efficiency and environmental responsibility. Designed for superior performance, the ST230V combines raw power with operator-focused controls to maximize productivity on any job site.

Key Features:

• Powerful & Efficient Engine: Yanmar 4TNV98CT, 73 HP, Tier 4 Final compliant
• Two-Speed Travel: 8 mph high, 5 mph low for faster job site navigation
• Operator Comfort: Spacious cab with auto-temp HVAC, air-suspension seat, and pilot controls
• Superior Maneuverability: Vertical lift design enhances reach and material handling efficiency
• High Torque & Fuel Efficiency: Delivers strong breakout force with optimized fuel consumption

Sany SY16C Engine
interior of a sany sy16c excavator

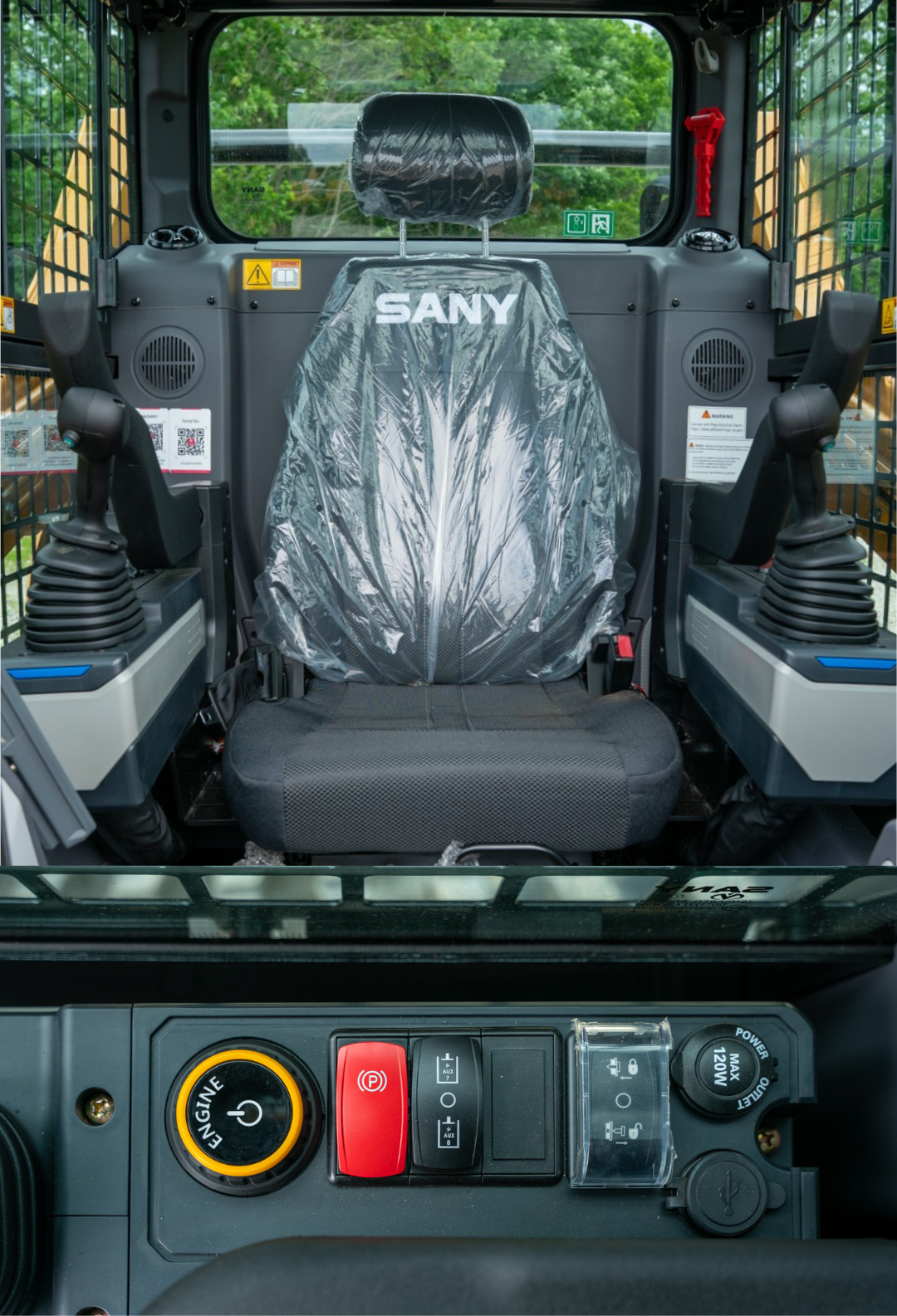

Cab Comfort & Operator Experience

The SANY ST230V is designed with operator comfort in mind, ensuring productivity and ease of use throughout long workdays. The spacious, climate-controlled cab provides a premium work environment, reducing fatigue and enhancing efficiency on the job site.

Key Features:

The ST230V’s operator-focused design ensures a comfortable, efficient, and highly productive work experience in any terrain or application.

• Auto-Temperature HVAC System: Maintains a comfortable working environment in any weather condition.
• Air-Suspension Seat: Reduces operator fatigue by absorbing vibrations and providing customizable support.
• Ergonomic Pilot Controls: Deliver precise, responsive operation for improved handling and efficiency.
• 7-Inch LCD Display: Provides real-time machine diagnostics and performance data for easy monitoring.
• Excellent Visibility: Large windows and optimized cab design offer a clear view of the job site for increased safety and accuracy.
• Tilt-Up Cab Design: Allows easy access to service points, simplifying maintenance and reducing downtime.

Additional Features

Compact & Versatile Design

The SANY ST230V is built for agility and adaptability, making it a powerhouse in various job site conditions. Its compact frame allows for superior maneuverability, while its vertical lift design enhances reach and material handling efficiency.

  • Optimized Dimensions: Designed for easy transport between job sites.
  • Vertical Lift Path: Provides maximum reach and dump height for superior material handling.
  • Durable Undercarriage: Features anti-derailment track rollers for stability on rough terrain.

Performance & Durability

The ST230V is engineered for power and reliability, ensuring top-tier performance in demanding applications.

  • Powerful Engine & Hydraulics: Yanmar 4TNV98CT turbocharged engine delivers 73 HP, paired with high-flow auxiliary hydraulics for attachment versatility.
  • Hydraulic Quick-Coupler Ready: Enables fast, efficient attachment changes to maximize uptime.
  • Load Sensing Hydraulics: Enhances fuel efficiency and performance by adjusting hydraulic flow based on demand.
  • High Breakout Force: 5,733 lbf breakout force ensures superior digging and lifting capability.

User-Friendly Operation

The ST230V is designed with ease of use in mind, allowing operators to work efficiently with intuitive controls and premium comfort.

  • Pilot Controls: Provide smooth, precise operation for improved productivity.
  • Two-Speed Travel: 8 mph high / 5 mph low for quick movement across job sites.
  • Tilt-Up Cab Design: Allows easy access to service points for quick maintenance and reduced downtime.

With its rugged construction, high performance, and operator-focused design, the SANY ST230V is built to outlast and outperform in any working environment.

SANY ST230V Parts Coming Soon!

sany-st230v-parts-soon-to-be-in-stock

Here at Newman Tractor, our Parts Department is committed to keeping your SANY ST230Vs running at peak performance. When the ST230V launches, we'll have the parts you need, ready to go. Our team is always here to answer your questions and ensure you get the right parts, fast. Get your order started by calling us at 859.485.8500!

Looking for A Used
Skid Steer Loader?

Buying or renting used equipment is a smart choice for companies managing tight budgets or scaling quickly. Whether you're looking to trade-in, sell, or purchase a used skid steer, Newman Tractor offers fast and cost-effective solutions to match your needs. Our lot features a wide selection of pre-owned heavy equipment across various brands and models. Click below to explore our full inventory of used skid steers and more!

Skid Steers For Sale
Rent a Skid Steer Loader

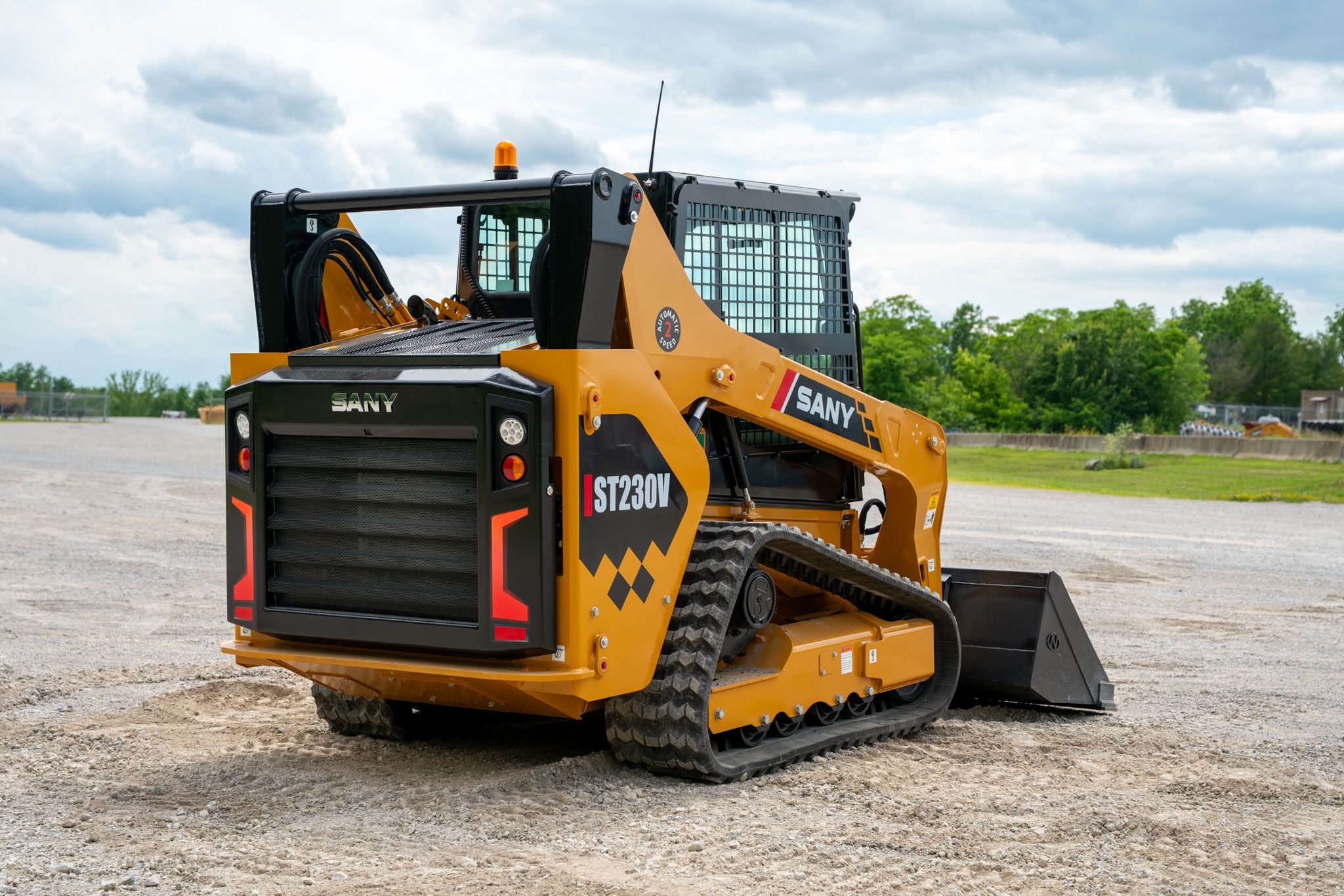

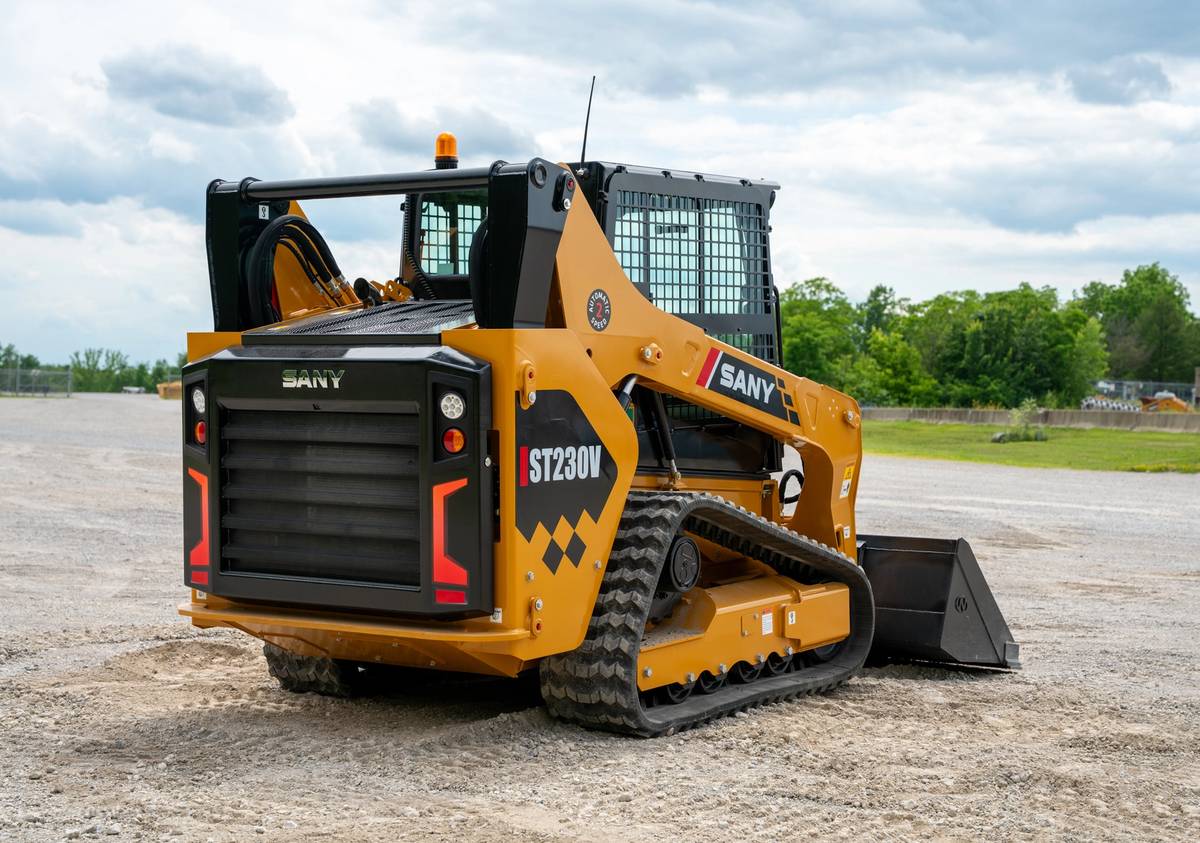

skid-steer-rentals-available-now-nationwide
