Motor graders, characterized by their long blades, are designed to create flat surfaces, making them useful in road construction, landscaping, and even snow removal. Despite their important role, many people new to construction might not be familiar with motor graders or their specific use. And people not in construction might not even be able to name a motor grader if they saw one at work.
Whether you're stepping onto a construction site for the first time or just curious about heavy equipment, we’ll help you understand why motor graders are a fundamental tool in construction.
Understanding Motor Graders
Definition and Description

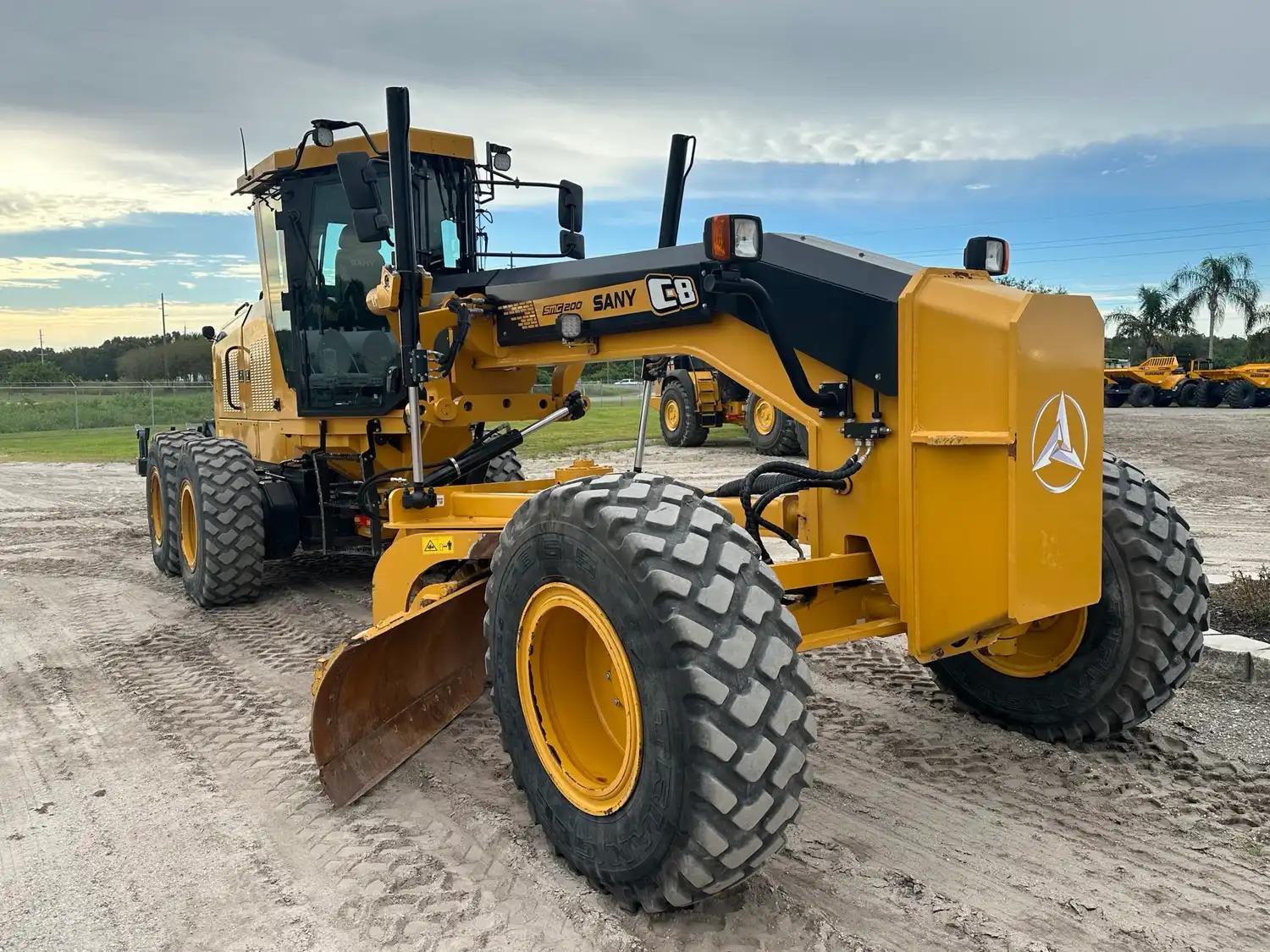

A motor grader, often simply called a grader on a job site, is a heavy construction machine used primarily for grading and leveling ground. The name makes sense, right?
Its most distinguishing feature is a long adjustable blade between the front and rear axles, which can be manipulated to cut, spread, and level surfaces. Typically, motor graders are equipped with three axles—the front axle is steerable, and the rear axles provide power. This configuration allows for precision and agility, making the motor grader ideal for tasks that require a delicate touch and exactness.
Parts of a Motor Grader
Blade (Moldboard): This is the central component of a motor grader. It can be adjusted to various angles or heights to cut and move material and create a flat surface.
Engine Assembly: Powers the machine and supports hydraulic systems for blade adjustments and other movements.
Cab: This houses the controls and the operator. It provides visibility and comfort and is equipped with advanced controls for precision.
Tires: Large, rugged tires provide traction and stability across different terrains.
Loader Bucket: An optional front-mounted attachment used for picking up and moving loose materials, such as soil and gravel.
Main Frame (Drawboard): The central structure where all major components are attached, providing stability and support.

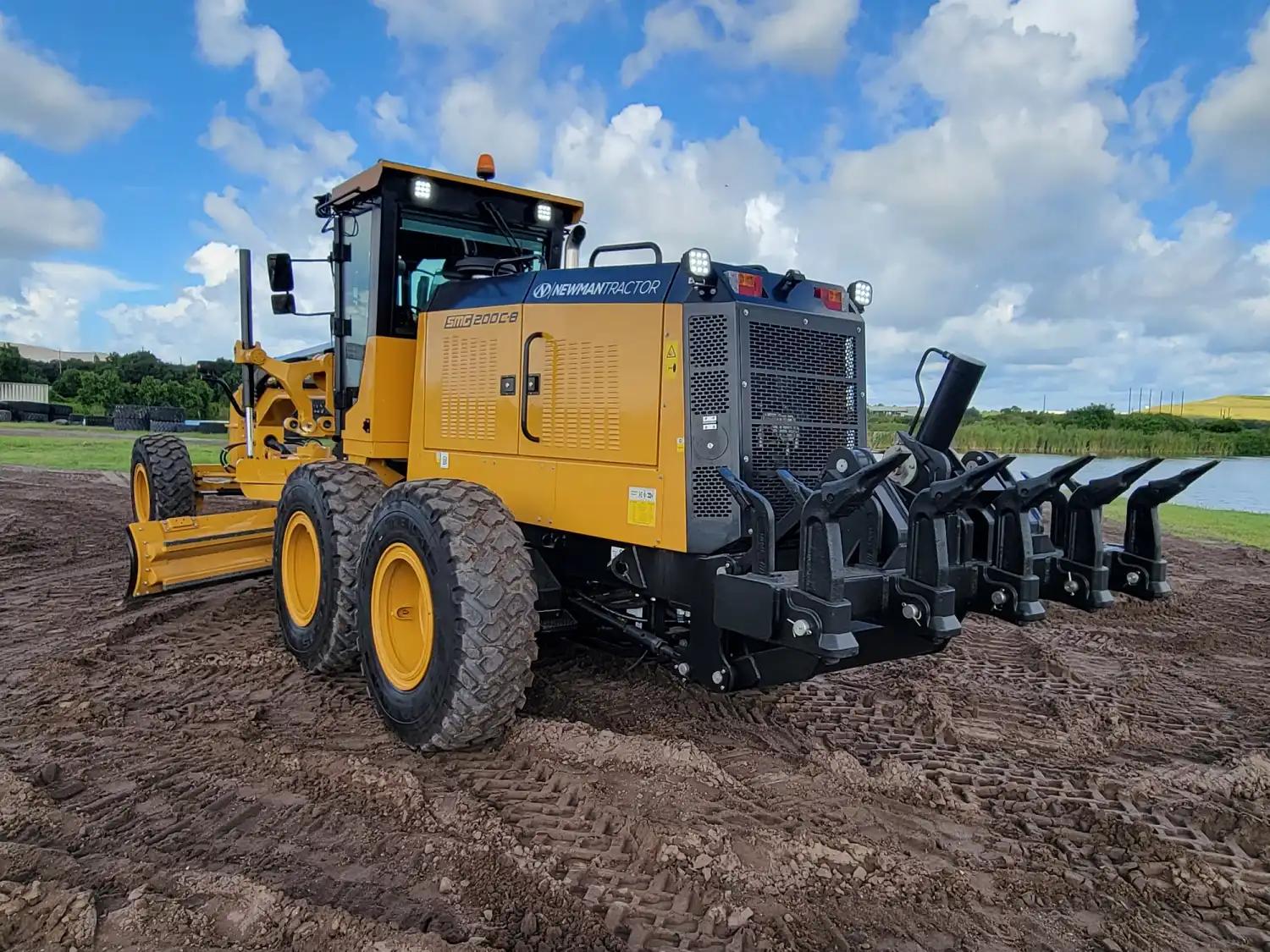

Ripper Assembly: Often attached at the back, this assembly breaks up hard surfaces or packed soil, making it easier for grading.
Scarifier: Breaks up hard-packed surfaces to prepare them for smoothing by the blade. This tool is particularly useful in prepping old roads for resurfacing or in initial road construction where the top layers of soil need to be loosened before grading.
Each component of a motor grader is designed to work together to create level surfaces.
The Functions of a Motor Grader
Construction
Motor graders play a crucial role in leveling and grading surfaces, a necessary task in several construction phases. Initially, they are used in the site preparation phase to create a level base for laying foundations. This includes grading roadways and parking lots, ensuring proper drainage and a solid base to support the above structures.
During road construction, motor graders help shape and level the subgrade (the native soil) and then fine-grading the aggregate layers before asphalt is laid. They ensure the surface is smooth and compact, which is essential for the longevity and safety of the road.
In landscaping projects, motor graders help sculpt the land according to precise design specifications, ensuring proper terrain shaping for aesthetic and functional purposes, such as water runoff and user accessibility.
Motor graders can be used in the final stages of construction projects for finish grading, providing the precise leveling needed for sidewalks, curbs, and gutter installations. This final touch ensures that surfaces have the proper elevation and drainage.
By adjusting the angle and height of their blades, these machines evenly distribute soil or other materials over large areas. This capability is needed when preparing the base course for roads, ensuring a level and stable foundation that can support the heavy loads of daily traffic. Similarly, in building construction, motor graders are used to level the grounds before laying the foundation, helping to prevent structural issues caused by uneven surfaces.
Road Work
In road construction and maintenance, motor graders are a must. Their precision allows them to shape the road to the correct profile, ensuring proper drainage and a smooth surface, which are essential for road safety and longevity. Whether it’s grading dirt roads to remove potholes and bumps or setting the native soil foundation layers for new roads, motor graders ensure that the road base is perfectly prepared for the subsequent layers of material.
Snow Removal and Other Uses
Beyond construction, motor graders are also used for snow removal. Equipped with a front-mounted blade, they can efficiently clear snow from roads and parking lots.
Additionally, these machines are used in landscaping to create graded surfaces for water drainage or aesthetic purposes. Heck, we even saw one tearing up a rubber track at a local school recently. Specialized attachments like scarifiers for breaking up hard surfaces or wing blades for moving more material in one pass further enhance the versatility of motor graders, making them valuable in various scenarios beyond their primary construction role.
Operating a Motor Grader
Heads up, this doesn’t replace any formal training. And we’re not OSHA, so don’t come at us about safety. This is just a high-level review on how to operate a motor grader.
Basic Operating Techniques
Operating a motor grader effectively requires understanding certain techniques to enhance precision and efficiency. First, it's important for operators to maintain a consistent speed that matches the task at hand; too fast, and the blade may skip over the surface, too slow, and the blade can dig too deeply. Adjusting the blade angle and height appropriately allows optimal control of moving material.
Operators should practice making incremental adjustments to find the ideal blade setting for each specific job. Additionally, using the grader's articulation feature helps make sharper turns and get the blade into the right position, particularly in tight spaces.
Safety Tips
Safety isn’t an option when operating a motor grader or working in its vicinity–it’s a necessity. Here are some essential safety tips:
Always perform a thorough pre-operation inspection, including checking the tires, blade, and hydraulic systems, to ensure everything is in good working order.
Use mirrors and cameras to check blind spots and be aware of the surroundings.
Use signals and radios to communicate effectively with ground personnel. Ensuring everyone knows where the grader will be moving can prevent accidents.
Maintain a controlled speed and be cautious with blade adjustments to avoid sudden movements that could destabilize the grader.
Operators should receive proper training on the specific motor grader model they are using to understand all controls and safety features.
Following these basic operating techniques and safety tips will help ensure that motor grader operations are effective and safe for everyone involved.
The Importance of Motor Graders in Construction
Versatility and Efficiency
Motor graders are among the most versatile pieces of equipment in the construction industry. Their ability to perform multiple tasks, from leveling and grading to snow removal and landscaping, makes them indispensable on a variety of projects. The precision and control that motor graders offer contribute significantly to the efficiency of construction operations, allowing for faster completion of tasks with fewer passes needed. This versatility saves time and reduces the need for multiple machines, simplifying logistics and lowering operational costs.
Economic Impact
The economic benefits of using motor graders in construction projects are substantial. By ensuring that surfaces are perfectly leveled and graded, these machines lay the groundwork for other construction phases to proceed smoothly, reducing delays and minimizing costly rework. In road construction, for instance, the proper initial grading by a motor grader is crucial for the longevity of the road, which can significantly reduce maintenance costs over time. And the ability of motor graders to adapt to different tasks with the addition of attachments enhances their cost-effectiveness, providing more value from a single investment.
Motor Graders: Necessary but not well-known
We've seen how important these machines are for improving operational performance and reducing costs. Whether you're new to construction or already familiar with the field, learning more about equipment like motor graders can always come in handy on a job site. Explore these essential tools to better understand the infrastructure surrounding us.
